Cable tester UNI-T UT682D

Description

Cable tester UNI-T UT682D

This product comes with a 3-year warranty.

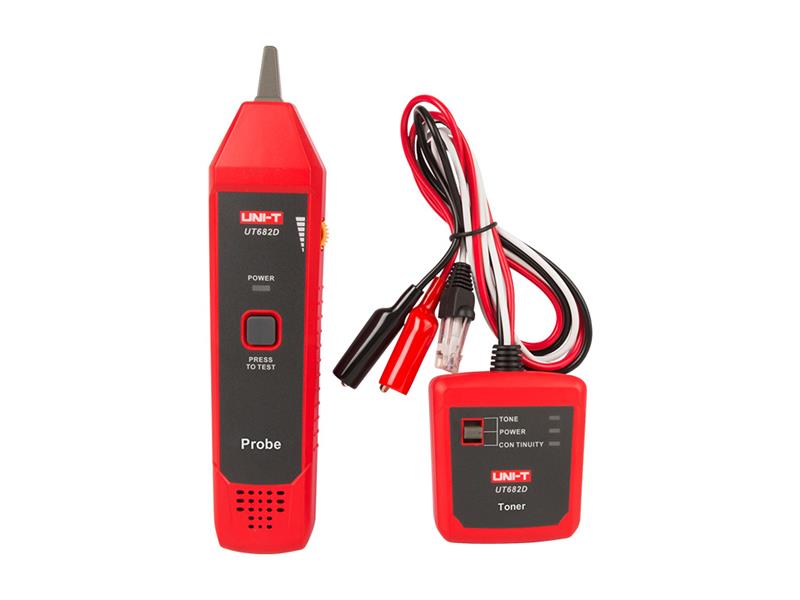

UT682D Wire Tracker
UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables

Specifications:
Wire tracking features

Wire types: Telephone line twisted pair electric wire
Telephone lines tracking distance: ≥3000m
Polarity indication for telelphone lines DCV function, range: ±(5V~52V)
Telephone lines and LAN cables distinction Jacks distinction √
Transmitter output voltage: 8V DC with a new battery
Transmitter power supply 9Vbattery
Receiver power supply 9V battery
Max receiver standby current ~10mA √
Max receiver operating current <40mA (AC, RMS) √ Transmitter input voltage protection: 60V DC
Operating environment:
Operating temperature: 0~40℃; Storage temperature: -10~50℃
Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m

General Characterisitics:
Product color: Red and grey
Product net weight: Transmitter-150g, Receiver-130g
Product size: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
Standard accessories: 9V battery x 2
Standard individual packing: English manual
Standard quantity per carton 20pcs
