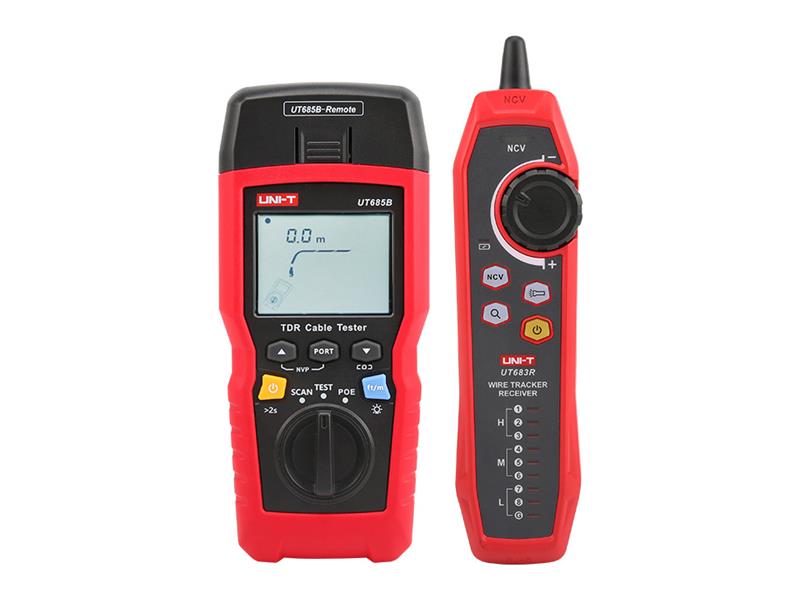

Cable tester UNI-T UT685B KIT

Description

This product comes with a 3-year warranty.

Cable Tester UT683B KIT is a handheld TDR cable tester, suitable for copper cables (CAT 5E, CAT 6, CAT 6A or CAT 8), which is used to detect and diagnose the connection condition of twisted pair and coaxial cables, detect network services, short/open circuits in the network cabling, pair splitting, faulty wiring, etc. It can also be used to detect whether there is a PoE (POE module) supply in the network cabling, and the PoE standard (802.3AF, 802.3AT, 802.3BT). A wire map, cable length, broken circuit location and other information can be displayed simultaneously on the screen. The cable tester is characterized by accuracy, easy operation, visible display, which makes it an ideal tool for network communication maintenance,

Product parameters:

– testing of twisted pair network cabling
– cable length test
– TDR technology
– tests RJ11, RJ45 and coaxial cable types
– POE mode
– range 500m
– resolution 0.33 m
– 70V DC input protection
– 2.8 inch backlit LCD display
– graphical interface

Technical parameters :

Tested cable type:
– twisted pair cable
1. UTP (unshielded cable),
2. FTP (cable shielded with aluminum foil);
3. SSTP (double shielded network cable);
– coaxial cable: 50Ω, 75Ω, 93Ω

Cable length test:
– range: 500 m
– resolution: 0.33m
– accuracy: ± 4% or 0.6 m

POE detection:
– POE power detection
– POE standard: 802.3AF
– POE standard: 802.3AT

– ethernet port test
– cable location test √
– 70VDC input protection
– 2.8″ LCD display
– automatic shutdown: approx. 10 minutes
– operating temperature: 0~45 °C
– storage temperature: -20~60 °C
– operating humidity: 20~75% relative humidity
– storage humidity: 10~90% relative humidity
– altitude ≤ 2000 m
– TDR cable tester size: 181mm x 80mm x 39mm
– receiver size: 197mm x 48mm x 34mm
– weight of the cable tester: 360 g
– receiver weight: 127 g
– power supply: 4 x AAA (LR03) alkaline batteries
