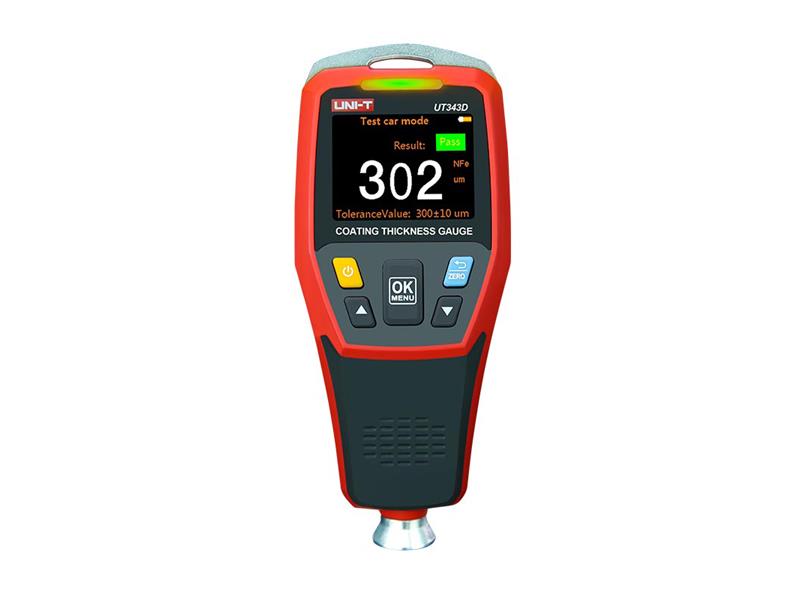

Coating Thickness Tester UNI-T UT343D

Description

Coating Thickness Tester UNI-T UT343D

This product comes with a 3-year warranty.

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

Applications:
It is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.

Specifications

Measuring range: 0~1250um
Accuracy ±(3%H+1)um
Resolution: 0.1um (0~99.9um); 1um (100~1250um)
Measurement method: Single/Continuous
Measurement mode: Max/Min/Avg
Metal type: Ferrous/ non-ferrous

Features

Display type: 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control: √
Auto rotatable screen: √
Unit conversion: √
Audio alarm: √
LED alarm : √
PC analysis software: √
USB communication: √
Quick test mode: √
Data storage: 500 groups
Auto power off: √
Low battery indication: √

General Characterisitics

Power: 3V battery (R03) x 2
Display: 48mm x 36mm
Product color: Red and grey
Product net weight: 175g
Product size: 153.5mm x 64.5mm x 41mm
Standard accessories: Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing: Gift box, manual

Standard quantity per carton: 10pcs
