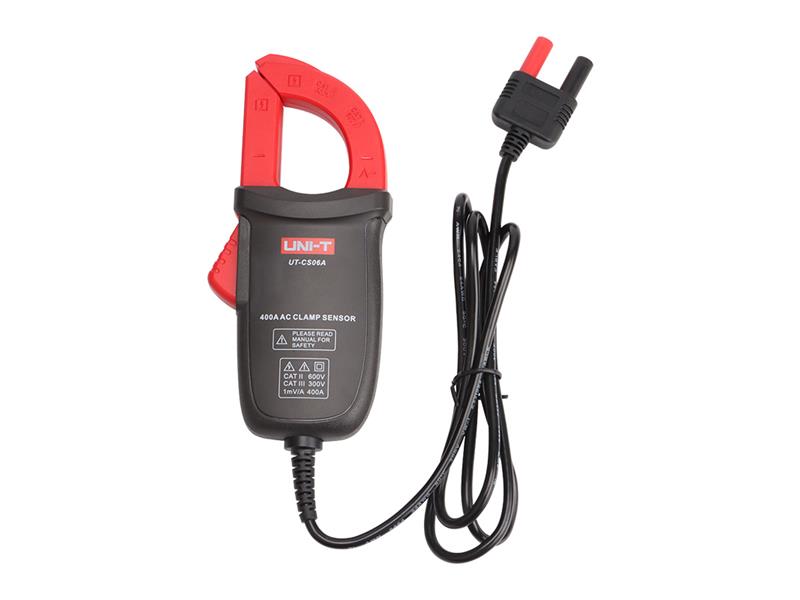

Current Clamp sensor UNI-T UT-CS06A

Description

This product comes with a 3-year warranty.

The UT-C506A is an AC current meter with high reliability and safety, which serves as a supporting device for measuring current with a multimeter. It fits most UNI-T multimeters and features a small and convenient design that is an ideal tool for extending the current ranges of multimeters. Clamps are used in conjunction with a mutimeter, it measures the current with a sensor and converts the measured current into a voltage, then transmits the voltage to the multimeter with a cable, which displays the corresponding values on the multimeter. The UT-CS06A has the ability to measure alternating current up to 400 A. The reliable measurement accuracy and unique exterior design make it a practical tool.

Product parameters:

– compact design, easy to use
– low weight enabling one-handed work in the air
– can be used to measure multiple types of cables, it can measure cables with a maximum diameter of 28 mm
– use together with a multimeter allows you to get accurate readings without breaking the circuit
– ability to measure alternating current up to 400 A, frequency response 50Hz-400Hz
– achieving fast reading at 1mV/A output
– measurement category: CAT II 600V, CAT II 300V

Technical parameters:

– current measurement: 1- 400 A AC
– resolution: 0.1A
– frequency AC A: 50 Hz to 400 Hz
– output ratio: 1mV/A
– accuracy ± (2.5% +0.5A), 50 – 60Hz ±(2.8% +0.5A), 60-400Hz
– resistance to falling: 1 m
– suitable for most UNI-T multimeters
– maximum jaw opening: 28 mm
– cable length: 1.1m
– operating temperature: 0-40 °C (32-104 °F)
– storage temperature: -10-50 °C (14-122 °F)
– dimension: 158 x 65 x 33 mm
– accuracy depends on the multimeter
– the actual RMS value depends on the multimeter
– response time Depends on the multimeter
– power supply: no battery required
– weight: 215.3 g
