DC Power Supply UNI-T UDP1306C

Description

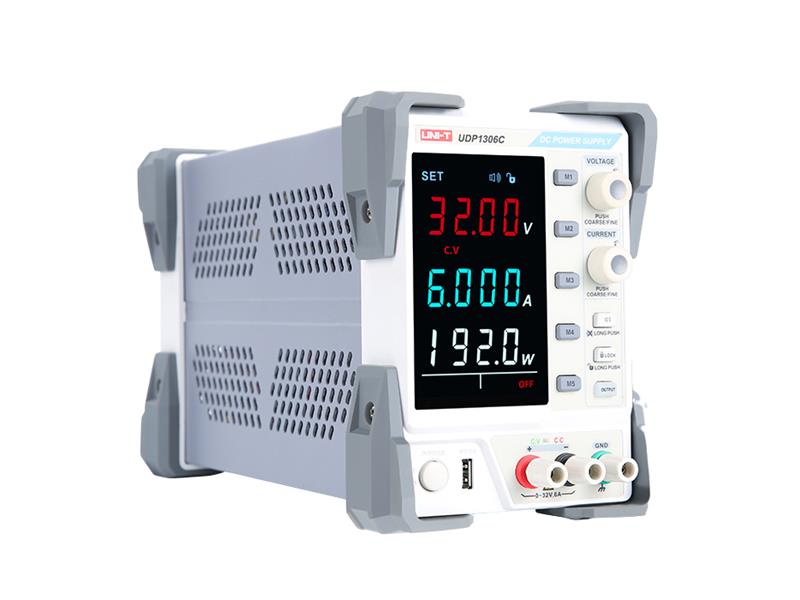

DC Power Supply UNI-T UDP 1306C

The UDP1306C Programmable DC Power Supply is a cost-effective, branded laboratory power supply with one main output channel and a USB charging channel. It is a basic power supply product for users who need a smaller size power supply with high reliability. Compared to higher types (multi-channel) of UDP sources, this source allows a greater load of one channel, up to 6A at a voltage of 32V.
The source contains a classic linear transformer and enables work in the setting mode of constant output voltage (CV) in the range of 0 to 32V or in constant output current (CC) mode of 0 to 6A. In addition, there is a USB connector on the front panel, which can be used to charge, for example, a mobile phone with a voltage of 5V and a current of up to 3A.
The laboratory power supply has an EBTN display with three high-precision indicators that simultaneously display voltage, current and power with an accuracy of 4 digits.
The source has programmable parameters. It has 5 memories for easy storage and recall of set modes, and a button lock to prevent unwanted parameter changes. On the back side of the source housing are the USB-Device and RS232 connectors and the DIGITAL I/O interface for remote control of the source. Using the supplied software, it is possible to record and display in real time on the connected PC in an Excel table or in a graph, the consumption or charging characteristics of the connected load, and based on SCPI communication commands it can communicate with the computer.
Regular calibrations can be performed by software.
The source contains a temperature-controlled fan, long-term temperature overload of the transformer of the laboratory source is monitored by sensors that turn the source off when the limit value is reached and turn it on again after cooling down.

Product parameters :

– fine software adjustment of output voltage and current
– three four-digit displays for immediate control of voltage, current and power
– voltage setting from 0 to 32V with a resolution of 10mV
– current setting 0 to 6A with a resolution of 1mA
– operation of the source in constant voltage (CV) or constant current (CC) mode
– overvoltage protection (OVP), overcurrent protection (OCP), temperature protection (OTP)
– a channel for charging e.g. a mobile phone on the USB connector on the front panel
– USB-Device interface, RS232, DIGITAL I/O on the rear panel
– built-in buzzer to indicate change of states
– locking buttons to prevent unwanted parameter changes
– temperature-controlled intelligent cooling fan
– disconnection from the power supply in case of thermal overload of the transformer
– on the back, input voltage selector 110V/120V/220V/230V (AC 50/60Hz)

Technical parameters :

– nominal output voltage: 0 to 32V
– rated output current: 0 to 6A
– total nominal output power: approx. 192W
– voltage/current setting resolution: 10mV/1mA
– accuracy of voltage setting in mode (CV): ≤ (0.01% of measured value +3mV)
– current setting accuracy in (CC) mode: ≤ (0.1% of measured value +3mA)
– noise and hum (5Hz to 20MHz) on the main output: ≤2mV RMS / ≤3mA RMS
– nominal voltage/current protection on the USB output: 5V ± 5%/3A
– temperature coefficient of voltage//current: ≤ 300ppm/°C // ≤ 300ppm/°C
– rated supply voltage: AC 110V/120V/220V/230V / (50/60Hz)
– protection (at 110/120V/AC power supply): tube fuse type: T6.3AL/250V (20x5mm)
– protection (with 220/230/AC power supply): tube fuse type: T3,13AL/250V (20x5mm)
– dimensions (width x height x depth): 136 x 194 x 327mm
– weight: approx. 7.5 kg

Contents of individual packaging :

– laboratory source UDP1306C: 1pc
– power cable: 1 pc
– interface cable USB-A – USB-B (UT-D14): 1 pc
– set of connection cables with alligator clips: 1 set
– spare fuses: 1 pc
– instructions for use: 1 pc
– on order RS232 communication cable: 1 pc

Packaging for bulk customers :

– standard quantity per carton: 1 pc
– standard carton dimensions: 505 x 270 x 335 mm
– gross weight of the carton: 9.6 kg

MANUFACTURER: UNI-T
www.uni-t.cz

PC link software download link:
https://instruments.uni-trend.com/EU-EN/powersupplies/udp1306c.html
