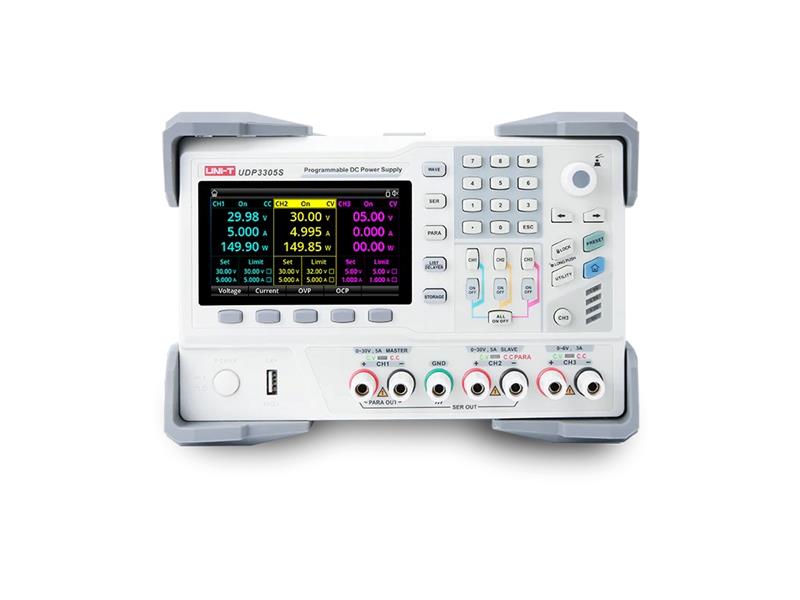

DC Power Supply UNI-T UDP3305S

Description

This product comes with a 3-year warranty.

Programmable linear DC power supply UNI-T UDP3305S – UDP3000S series is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a number of analytical functions and communication interfaces. It can meet the diverse testing needs of users.
Its goal is to provide affordable programmable DC power supplies for education, scientific research, industry and other fields.
4 channels, CH1/CH2: 0~30V/0~5A, CH3: 0~6V/0~3A, CH4: 5V/2A, Resolution: 1mV/1mA, Power: 328W, Accuracy: <0.03%+10mV/<0.2%+5mA, USB/RS232/LAN, Digital I/O
Product parameters:

– split screen function
– value monitoring in real time

LCD interactive interface:
– using a 4.3 inch high-definition display, it provides users with an interface with rich functions and easy operation, which can display the current set output voltage/current, the actual output voltage/current and the protection of the power supply output value in real time. The functional interface is simple and complex, easy to operate

List/Delay Functions:
– with list and delay setting functions, up to 2048 sets of data can be set according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cyclic testing and aging testing

One-button setting for series and parallel connection:
– series-parallel connection between CH1 and CH2 of the main channel can be implemented without an external connection, which simplifies the connection and facilitates the test

Extended interface for remote control:
– standard RS232 communication interface, Ethernet interface, digital I/O and USB master and slave interfaces can be controlled by remote connection to Ethernet or via RS232 and USB using host computer software to achieve software control

Technical parameters:

– model type: UDP3305
– linear, multi-channel programmable laboratory power supply
– number of channels: 4Ch
– type of display used: LCD 4.3″
– supply voltage: 230V AC, 50Hz

– output voltage:
CH1/CH2: 0 ~ 30V DC
CH3: 0 ~ 6V DC
CH4: 5V DC
– output current:
CH1/CH2: 0~5A
CH3: 0~3A
CH4: 2A

– total power: 328 W
– output voltage resolution: 1mV
– output current resolution: 1mA
– voltage stabilization: ≤0.03% + 10mV
– current stabilization: ≤0.2% + 5mA
– interface: USB device, RS-232, LAN, USB host, digital I/O
– dimensions: 355 x 240 x 168 mm
– supplied accessories: power cable, USB 2.0 print cable
– transport weight: 10.2 kg

Manufacturer: UNI-T
Link to download software for PC connection:
https://instruments.uni-trend.com/products/dc-power-supplies/UDP3000S
