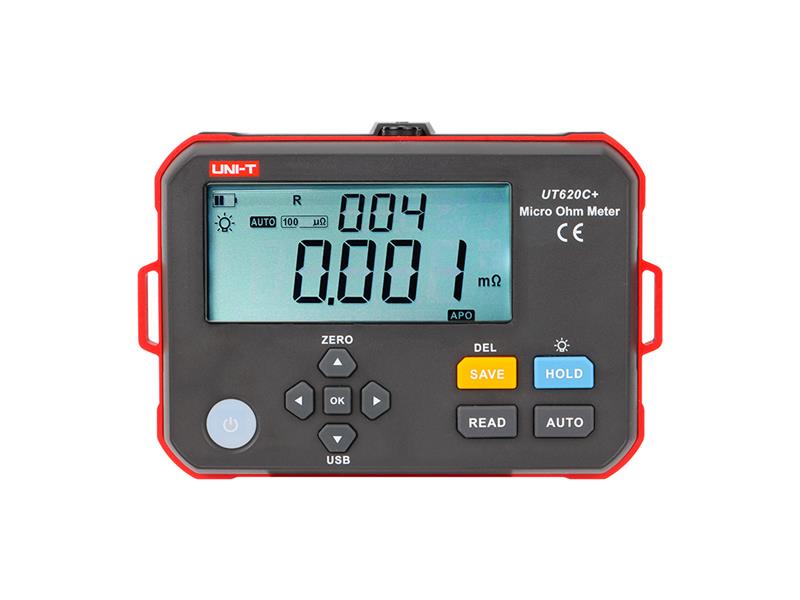

Digital Micro Ohm Meter UNI-T UT620C+

Description

This product comes with a 3-year warranty.

UNI-T UT620C+ digital microohm meter. It is a highly accurate portable resistance meter capable of measuring resistance values ​​from microohms to megaohms. It is ideal for testing and maintaining large equipment, such as measuring the winding resistance and welding of large motors and stators for hybrid and electric vehicles. It is widely used in telecommunications, distribution systems, petrochemicals, grounding systems of industrial equipment, etc.
UT620C+ consists of meter (designed with large LCD), PC software, test leads, communication cable.

Product parameters:

– fine resolution 1μΩ
– resistance measurement range: 0.001mΩ ～ 300.0KΩ
– accuracy can reach ±0.1%FS
– measuring current ≤ 1A
– storage of 500 groups of data
– large LCD display
– automatic shutdown, longer standby time
– Lithium battery
– compact design, easy to carry and operate

Technical parameters:

– resistance range / max. test current / resolution:
100.1kΩ ～ 300.0kΩ/ 3μA ±(2%+6) / 100Ω
10.01kΩ ～ 100.00kΩ/ 3μA ±(5%+6) / 10Ω
1.001kΩ ～ 10.000kΩ/ 10μA ±(2%+6) / 1Ω
100.1Ω ～ 1000.0Ω/ 100μA ±(5%+6) / 0.1Ω
10.01Ω ～ 100.00Ω/ 1mA ±(.2%+6) / 0.01Ω
1.001Ω ～ 10.000Ω/ 10mA ±(5%+6) / 0.001Ω
100.1mΩ ～ 1000.00mΩ/ 100mA ±(2%+6) / 0.1mΩ
0.001mkΩ ～ 100.0mΩ/ 1A ±(5%+6) / 0.01/0.001mΩ

– resistance measurement of all types of wires, switches, connectors, contactors, fuses, coils, transformer windings, etc.
– accurate 4 wire method
– test current: ≤1A
– open circuit voltage ≤4.2V
– input protection: ≤36V AC/DC
– Measurement power: ≤8W
– measurement speed approximately 2 times/s
– automatic shutdown after 15 minutes if no operation is performed
– USB Type C input interface
– display backlight
– low battery indication
– degree of protection: IP54
– Lithium battery: 3.7 V DC / 3200 mAh
– product color: black + red
– product weight 480 g (including battery)
– product dimensions 161 mm × 117 mm × 68 mm

Manufacturer: UNI-TREND
