Generator UNI-T UTG1022X

Description

This product comes with a 3-year warranty.

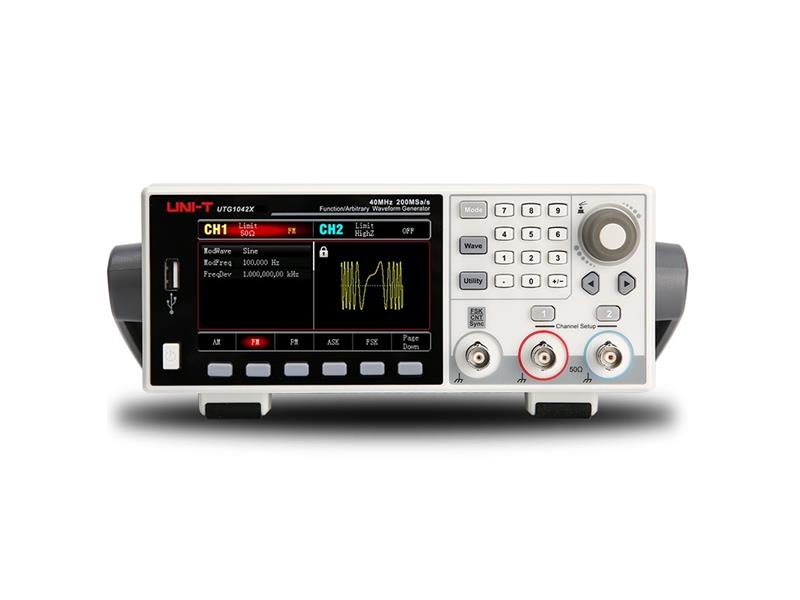

The UTG1022X function generator from the UTG1000X series has an accurate and stable output waveform with a resolution of up to 1 μHz. It is an economical, high-performance and multifunctional function/arbitrary waveform generator. It can generate accurate, stable, clean output signals with low distortion. With convenient operation, excellent technical indicators and user-friendly graphic display, it is a multi-purpose device that meets the needs of learning, testing and manufacturing.
The generator is expected to be used in teaching, designing, testing, troubleshooting and repairing electronic and electro-acoustic devices; testing semiconductor components, etc.

Product parameters:

– dual-channel system with equal power
– simultaneously provides two channels with high power. High output amplitude is still guaranteed even at high frequencies
– Can generate a square wave up to 10MHz
– High signal-to-noise ratio
– Optional power amplifier module: The PA model is equipped with a standard power amplifier module, which can provide a maximum waveform signal of 4W to meet the test requirements of some power devices
– Rich Burst function: nOffers three pulse train generation methods, allowing more flexible generation of various pulse trains
– Multiple modulation modes: Offers seven analog and digital modulation methods AM, FM, PM, FSK, ASK, PSK and PWM, allowing multiple fields to be used
– Sweep function: Supports two frequency sweep methods: “linear” and “logarithmic”
– 200MSa/s sampling rate and 16-bit vertical resolution
– Multifunction knob and numeric keypad for easy operation

Technical parameters:

– Maximum waveform frequency: 20MHz
– Power supply voltage: 220 – 240 V AC / 50Hz
– waveform frequency range: 1µHz…5MHz (arbitrary waveform), 1µHz…10MHz (pulse waveform), 1µHz…10MHz (square waveform), 1µHz…20MHz (sine waveform), 1µHz…400kHz (ramp waveform)
– type of display used: LCD TFT 4.3″
– display: LCD TFT with a diagonal of 4.3″, 480 x 272 pixels
– number of channels: 2
– vertical resolution: 16 bits
– memory depth: 4 kpts
– output parameters: impedance: 50Ω
– dimensions: 215 x 103 x 316 mm
– interface: USB
– type of modulation: AM, ASK, FM, FSK, PM, PSK, PWM
– waveforms: arbitrary, square, DC, pulse, ramp, sine, noise
– sampling rate: 200MSa/s
– memory: 200 waveforms

Package contents:
– BNC-BNC cable
– BNC cable – alligator clip
– USB cable
– power cable

manufacturer: UNI-TREND
www.uni-t.cz
