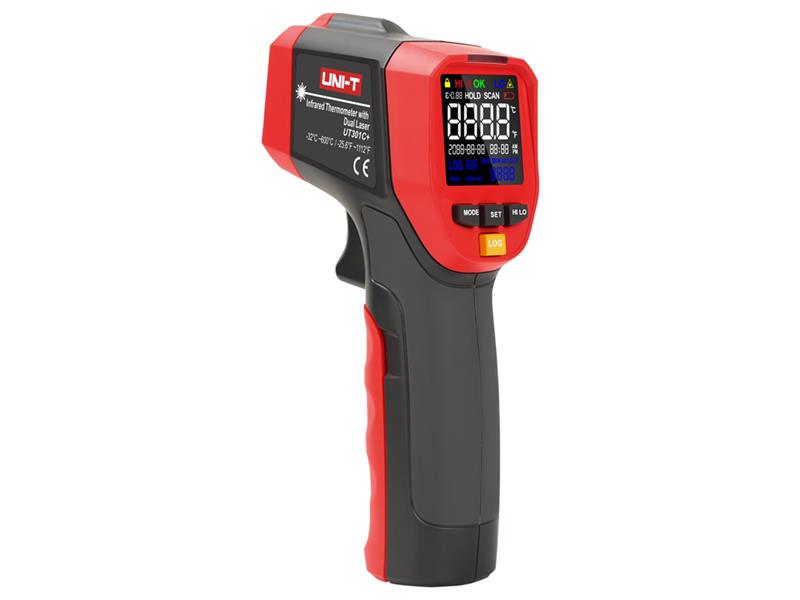

Infrared Thermometer UNI-T UT301C+

Description

Infrared Thermometer UNI-T UT301C+

This product comes with a 3-year warranty.

The non-contact thermometer UT301C+ is a durable and easy-to-use infrared thermometer with high accuracy / energy (95%) / repeatability. It has an adjustable high and low temperature visual/audio alarm that responds faster than 250ms, helping you quickly detect anomalies. You can preset and save 5 sets of emissivity values ​​and quickly switch the emissivity according to different surfaces to get more accurate results. With lock measurement, MAX / MIN / AVG / DIFF hold and tripod mount, the UT301C+ is ideal for processes that require temperature monitoring. The UT301C+ can be used for power distribution / transmission equipment inspection, HVAC / equipment maintenance, vehicle troubleshooting and other applications. EBTN color backlit display. Can be attached to a tripod with a standardized threaded hole.

Product parameters:

– range of measured temperatures: -32 to 600 °C
– measurement units: °C/°F
– the ratio of the measurement distance to the diameter of the measurement area 12:1
– possibility to preset the emissivity of surfaces: 0.1 to 1.0
– large multi-line LCD display EBTN 30 x 30 mm
– ring laser
– recording of 99 groups of temperature measurements
– date and time display
– user defined visual and acoustic alarm
– not for medical purposes

Ring Laser
Principle: this type of thermometer generates a laser ring (circle) around the area where the temperature is measured. The circle represents the entire measured area, which is useful for approximating a larger area.
Advantages: the ring laser makes it easy to determine the total measurement area, which is practical when measuring larger areas or surfaces with uneven temperature.
Application: suitable for applications where it is not necessary to focus precisely on a single point, but rather on a wider area (e.g. measuring the surfaces of engines or pipes).

Technical parameters:

– laser power: <1mW (class 2)
– display size: 30 x 30 mm
– temperature measurement range: -32 °C to 600 °C (-25.6 °F to 1112 °F)
– ratio D to S: 12 : 1 (95%)
– emissivity: 0.1 to 1.0 (adjustable, stores 5 sets of preset values)
– response time: ≤ 250 ms (95% measurement)
– spectral response: 8 μm – 14 μm
– accuracy >0°C: ± 1.5°C or ± 1.5%
– accuracy ≤0°C: ± (1.5°C°C + 0.1°C /°C)
– accuracy >32°F: ± 3.0°F or ± 1.5%
– accuracy ≤32°F: ± (3.0°F + 0.1°F /°F )
– measurement repeatability: 0.7 °C or 0.7% (1.5°F or 0.7%)
– data storage (Hold): yes
– data storage: yes 99 groups
– planned measurement: yes
– automatic shutdown: yes
– low battery indication: yes
– LED alarm: yes at high/low temperature
– sound warning: yes at high/low temperature
– tripod mounting hole: yes
– measurement modes: MAX / MIN / AVG / DIFF / Hold
– operating temperature: 0°C to 50°C (32°F to 122°F)
– storage temperature: -20°C to 60°C (-4°F to 140°F)
– operating humidity: <90% RH (non-condensing)
– drop test: 1 m
– power supply: 9V battery
– product color: red and gray
– net product weight: 204 g
– product dimensions: 160 mm x 74 mm x 48 mm

Contents of standard individual packaging:
– box
– UNI-T UT301C+ thermometer
– carrying bag
– 9V battery
– operating instructions
