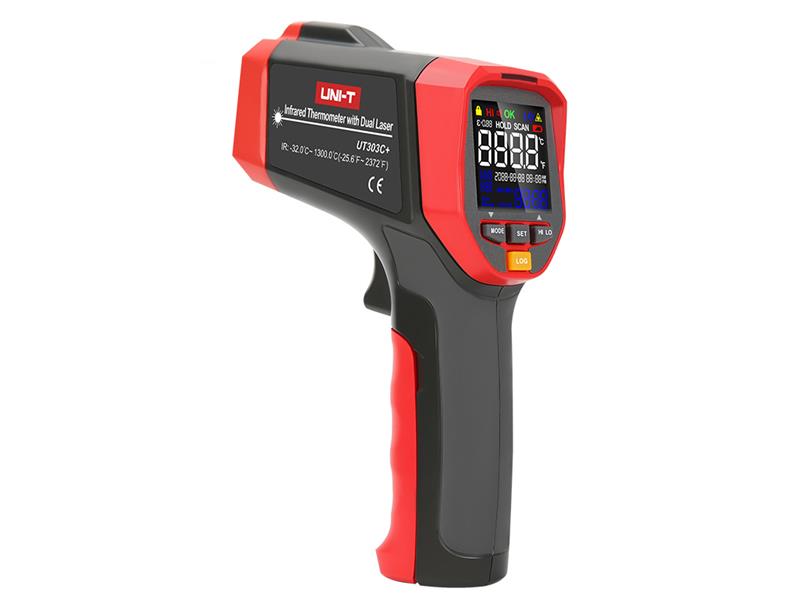

Infrared Thermometer UNI-T UT303C+

Description

Infrared Thermometer UNI-T UT303C+

This product comes with a 3-year warranty.

The UT303C+ infrared thermometer can quickly and accurately determine the surface temperature between -32°C and +1300°C by measuring the infrared energy radiated from the target surface. For easier and intuitive aiming of the device on the target surface, a unique ring laser aiming indication is built in, which is only offered by Uni-Trend for its devices. The ratio of the distance to the diameter of the measured surface is 30: 1 with this instrument. It is possible to preset the emissivity of the measured surface in the range of 0.1 to 1.0 and save the 5 most frequently used emissivities. Indication of preset functions and measured values ​​is provided by a clear and contrasting EBTN color display and limit values ​​are indicated by red, green and blue LEDs at the top of the device and a buzzer. It is possible to set the system time and schedule repeated measurements in the future with a set interval and save up to 99 measured values. The measurement time is also stored for each stored value. For these measurements, you will use the built-in standard hole for mounting to a tripod. The temperature measurement time is up to 250msec in 95% of cases. It is possible to set the minimum and maximum limit of values ​​and when measuring values ​​outside this interval it is indicated acoustically and optically. It is possible to indicate minimum, maximum and average temperatures and deviations from the average (MIN, MAX, AVG, DIF).

Product parameters:

– infrared thermometer for non-contact measurement of surface temperatures
– temperature range – 32°C to +1300°C, can be switched to °Farenheita
– delineation of the measured surface by a circular laser indication
– setting and storing 5 emissivity values ​​in memory
– the ratio of the distance to the diameter of the measured surface is 30: 1 with this instrument
– contrasting EBTN color display with dimensions of 35 x 35 mm
– indication of limit values ​​by means of LEDs red, green, blue and buzzer
– precise system time, programming of interval temperature measurement
– memory for 99 measurement sets
– tripod mounting hole

Technical parameters :

– temperature range: -32°C to 1300°C (-25.6°F℉ to 2372°F)
– temperature measurement accuracy ≥0°C: ± 1.5°C or ± 1.5% of measurement, whichever is greater
– temperature measurement accuracy <0°C: ± (1.5°C + 0.1°C / °C measurement, whichever is greater)
– temperature measurement accuracy ≥32°F: ± 3.0°F or ± 1.5% of measurement, whichever is greater
– temperature measurement accuracy <32°F: ± (3.0°F + 0.1°F / °F measurement, whichever is larger)
– measurement repeatability: 0.7°C or 0.7% (1.5 °F or 0.7% of measurement, whichever is greater)
– spectral response: 8μm to 14μm
– response time in 95% of cases: 250 ms
– the ratio of the distance to the diameter of the measured surface is 30: 1 with this instrument
– delineation of the circular laser measurement area: yes
– Class 3R circular laser: wavelength 630nm to 670nm, output power ≤3mW
– display: contrasting color EBTN with backlight measuring 35 x 35 mm
– indication of limit values ​​by means of LEDs red, green, blue and buzzer
– setting the emissivity of the measured surface in the range of 0.1 to 1.0
– 5 types of emissivity can be stored in memory
– 5 sets of high / low temperature warning presets can be stored
– measurement lock for processes that require long-term temperature monitoring
– system time, programming of interval temperature measurement
– memory for 99 sets of measurements
– automatic shutdown when idle
– power supply: 9V battery (1604A)
– battery life: continuous temperature measurement ≥8 hours
– low battery indication: yes
– drop test from a height: 1 m
– tripod mounting hole: yes
– pause of the MAX / MIN / AVG / DIF value
– operating temperature: 0°C to 50°C (32°F to 122°F)
– operating humidity: <90% RH (non-condensing)
– storage temperature: -20°C to 60°C (-4°F to 140°F)
– product color: red and gray
– net weight of the product: 310 g
– product size: 172 x 113.5 x 53 mm

Package contents :

– thermometer UT303C+: 1pc
– 9V battery: 1pc
– cover: 1pc blister
– manual: 1pc

Packaging for wholesale customers:

– standard quantity in a carton: 10pcs
– standard carton dimensions: 425 x 335 x 365 mm
– total carton weight: 6.65 kg

MANUFACTURER: UNI-TREND
https://www.uni-trend.com/
