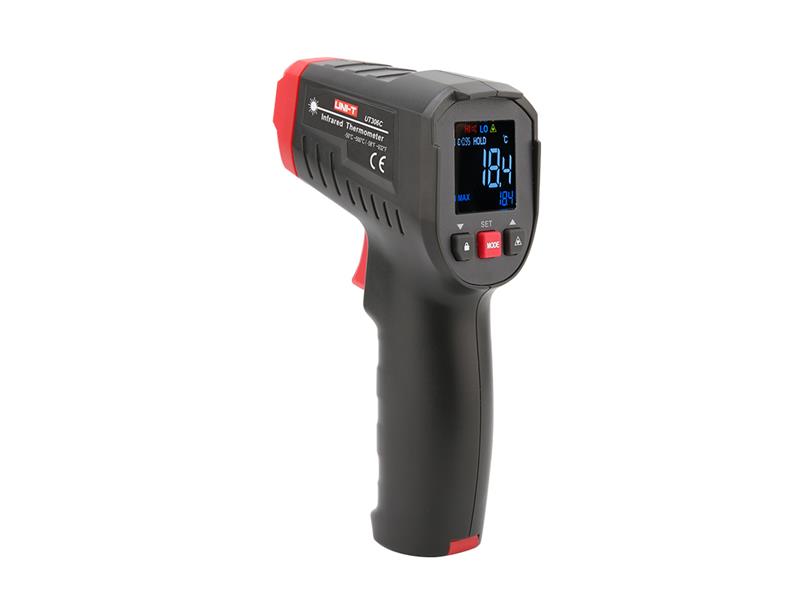

Infrared Thermometer UNI-T UT306C

Description

This product comes with a 3-year warranty.

The professional non-contact infrared thermometer UT306C can quickly and accurately determine the surface temperature in the range of -50 ° C to +500 ° C by measuring the infrared energy radiated from the target surface. For easier and intuitive aiming of the device on the target surface, a ring laser is built in, which indicates the correct aiming of the thermometer. The ratio of the distance to the diameter of the measured surface is 12: 1 with this device. This thermometer is resistant to falling from a height of 1 meter. It is possible to preset the emissivity of the measured surface in the range of 0.1 to 1.0. The indication of preset functions and measured values ​​is provided by a clear and high-contrast EBTN color display and the limit values ​​are indicated by a buzzer and on the display. Indication of minimum, maximum and average temperatures and deviations from the average (MIN, MAX, AVG, DIF) is possible. The thermometer automatically shuts off to reduce power consumption if left unused for 15 seconds in HOLD mode and 10 seconds in other modes. The temperature measurement time is up to 250msec in 95% of cases. Power supply of the device with two zinc-manganese or alkaline AAA 1.5V batteries.

This non-contact infrared thermometer can be used in a variety of areas, such as the food industry, machine maintenance, metalworking, cold stores and other industries.

Product parameters :

– infrared thermometer for non-contact measurement of surface temperatures
– temperature range – 50 ° C to + 500 ° C, can be switched to ° Farenheit
– delineation of the measured surface by a circular laser indication
– the ratio of the distance to the diameter of the measured surface is 12: 1 with this instrument
– contrasting EBTN color display measuring 25 x 26 mm
– indication of limit values ​​by means of a buzzer and on the display
– powered by two ZnMn or alkaline 1.5V AAA batteries

Technical parameters :

– temperature range: -50 ℃ to + 500 ℃ (-58 ℉ to 932 ℉)
– measurement accuracy in the range -50 ° C to 0 ° C: ± (2 ℃ + 0,1 ° C / ° C)
– measurement accuracy between 0 ° C and 500 ° C: ± 2 ℃ or ± 2% (whichever is greater)
– measurement accuracy between -58 ° F and 32 ° F: ± (4.0 ° F + 0.1 ° F / ° F)
– measurement accuracy between 32 ° F and 932 ° F: ± 4,0 ° F or ± 2% (whichever is greater)
– resolution: 0.1 ° C / 0.1 ° F
– spectral response: 8μm to 14μm
– response time in 95% of cases: ≤250 ms
– ratio of distance to diameter of measured surface: 12: 1
– delineation of the circular laser measurement area: yes
– class 2 ring laser: wavelength 630nm to 670nm, output power ≤1mW
– display: contrasting color EBTN with backlight measuring 25 x 26 mm
– setting of emissivity of the measured surface: in the range of 0.1 to 1.0; default 0.95
– measurement lock: yes
– powered by two 1.5V AAA batteries: ZnMn or alkaline
– ZnMn battery life: continuous temperature measurement ≥6 hours (laser on + display illumination)
– automatic shut-off on inactivity: yes
– low battery indication: yes
– drop test from a height: 1 m
– temperature alarm mode: HI / LO (High / Low alarm with acoustic indication)
– MAX / MIN / AVG / DIF suspension: yes
– operating temperature: 0 ℃ to 50 ℃ (32 ℉ to 122 ℉)
– operating humidity: <90% RH (non-condensing)
– storage temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
– product color: red and gray
– net product weight: 161.5 g
– product size: 146 x 94.5 x 46 mm

Package contents :

– thermometer UT306C: 1pc
– 1.5V / AAA batteries: 2 pcs
– cover: 1pc blister
– manual: 1pc

Packaging for wholesale customers :

– standard quantity in a carton: 20pcs
– dimensions of standard carton: 515 x 375 x 175 mm
