Insulation Resistance Tester UNI-T UT505A

Description

Multimeter UNI-T UT505A insulation resistance tester

This product comes with a 3-year warranty.

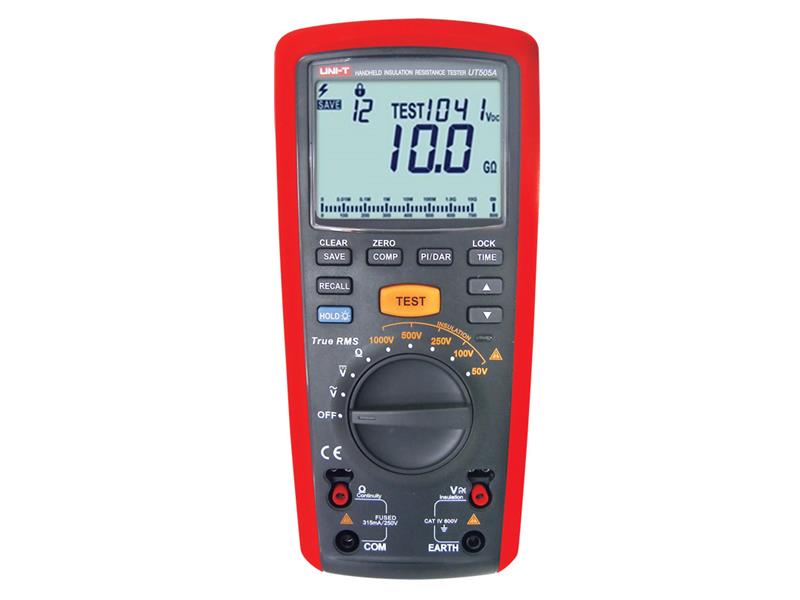

Handheld Insulation Resistance Tester UNI-T UT505A

– great value in small and ergonomic body
– testing voltage from 50V up to 1000V
– testing current smaller than 2mA = will not trigger normal RCD
– TRMS, lot of functions, automatic range switching
– CATIII 1000V, CATIV 600V

Functions:

– step voltage, 10% steps at 50% ~ 120% of range
– dielectric absorption index (DAR) 60s/15s and 60s/30s
– polarization index(PI)
– comparison
– timer
– high voltage indication
– automatic range switching
– true RMS
– auto range switching
– continuity buzzer
– low battery indication
– data hold
– data logging 99 values
– display backlight

Specifications:

Insulation resistance:
– testing voltage: 50V / 100V / 250V / 500V / 1000V
– 50V 0.1MΩ ~ 50.0MΩ ± (3%+5)
– 100V 0.1MΩ ~ 100.0MΩ ± (3%+5)
– 250V 0.01MΩ ~ 200.0MΩ ± (1.5%+5)
– 500V 0.01MΩ~500MΩ ± (1.5%+5)
– 1000V 0.1MΩ ~ 2000MΩ ± (1.5%+5)
– 1000V 2GΩ ~ 9.9GΩ ± (10%+5)
– 1000V 10GΩ ~ 20.0GΩ ± (20%+5)
– load current 1mA (50V@50kΩ, 100V@100kΩ, 250V@250kΩ, 500V@500kΩ, 1000V@1MΩ)
– short circuit current <2mA
– low resistance: 0.01Ω ~ 20.00kΩ ± (1.5%+3) about 5.0V/>200mA
– DC voltage: 0-600V ± (2%+3)
– AC voltage: 0-600V (45Hz~1kHz) ± (2%+3)

General characteristics:

– power: 6×1,5V alkaline battery LR6
– display size: 78x59mm
– weight: 630g
– size: 103x225x59 mm

Accessories: test leads, probe, alligator clip, batteries, manuals, carrying bag

Manufacturer: UNI-TREND
