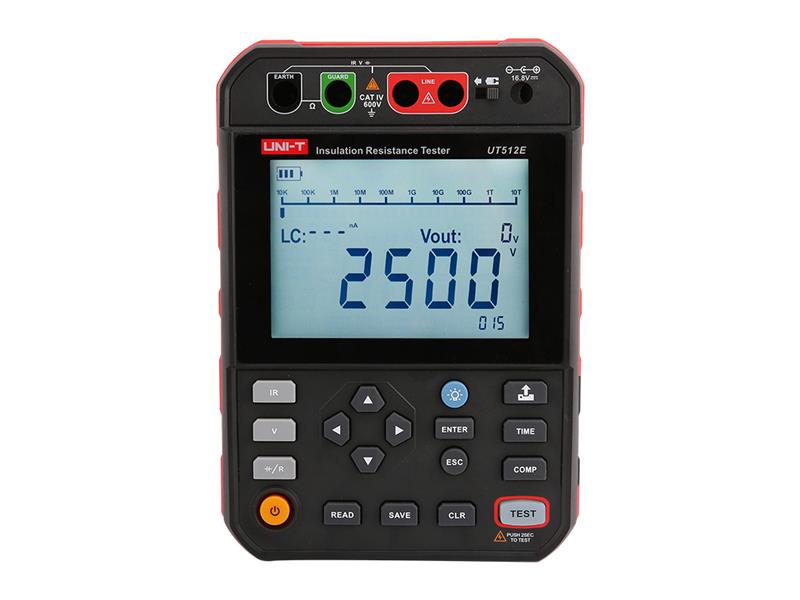

Insulation Resistance Tester UNI-T UT512E

Description

This product comes with a 3-year warranty.

UT512E 2.5kV Insulation Resistance Tester, is a digital high voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V, 2500V. It is an ideal measuring instrument for power department, telecommunication, meteorology, machine shop, oil field , electromechanical installations and maintenance and power supply departments in industrial and mining enterprises.

Product parameters:

– output voltage range: Up to 2.5kV
– PI/DAR measurement
– short-circuit current measurement
– automatic display of leakage current
– step voltage: 10% of range
– high voltage alarm
– automatic discharge
– data storage: 999 sets
– PC software analysis: via USB cable
– overvoltage category: CAT IV 600V

Technical parameters:

– test voltage: 500V / 1000V / 1500V / 2500V
– capacitance test: 0.01uF ～ 2.0uF / ±（15%+3）
– low resistance test: 0.1Ω ～ 600Ω / ±（2%+10）

– output voltage (nominal / voltage range:
250V / 350V, 275V, 300V
500V / 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V
2500V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V
output voltage step voltage range (Rating) Move 10% of each range each time and adjust the voltage range to 50%~120% of each range
display accuracy: ± (10% reading + 10V)
output accuracy：±(0%～20%)

– DC voltage: 30 ～ 1000 V DC / ±(3%+5)
– AC voltage: 30 ～ 750 V AC / 50Hz/60Hz ±(3%+5)
– current: 0.01nA ～ 5mA
– short-circuit current: approx. 5mA

– polarization index (PI): automatic display
– dielectric absorption (DAR): automatic display
– timing measurement
– resistance comparison
– monitoring function: monitor the voltage of the measured object and the state of discharge after testing
– timing range: 0 s ～ 99m and 59s
– storage function: 999 sets
– USB to connect to PC
– low battery indication
– automatic shutdown
– dimensions: 238 x 166 x 90.5 mm (L*W*D)
– power supply: 14.8V, 5200 mAh lithium battery
– product color black+red
– product weight: 1800 g (including battery)

Accessories:

– test cable (red, black, green: 1 for each) 3 pcs
– lithium battery charger (Output: 16.8 V DC, 2 A)
– Lithium battery (14.8V, 5200mAh)
– USB cable 1 pc
– carrying strap 1 pc

Manufacturer: UNI-TREND
