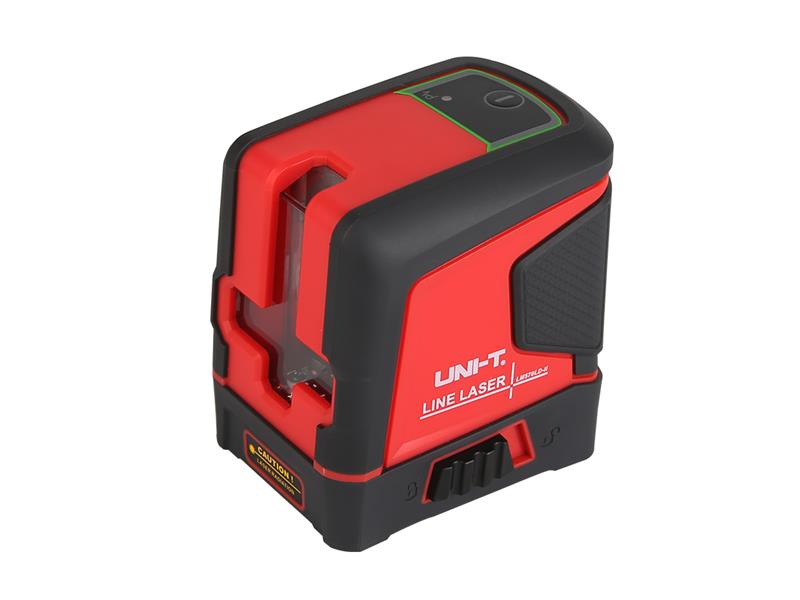

Laser cross level UNI-T LM570LD-II

Description

This product comes with a 3-year warranty.

This cross laser meter LM570LD-II is designed for interior construction work – floor leveling, wall tiling, painting, furniture assembly, etc. The device contains two lasers with green light with a radiated power of 2 x 20mW and is also suitable for large and bright spaces . Possibility of mounting the device on a tripod and working in manual or automatic mode, when it is able to draw a horizontal plane within three seconds.

Product parameters:

– two laser beams perpendicular to each other
– laser wavelength 520nm
– beam width at a distance of 10m is <4mm
– manual and automatic mode
– possibility of mounting on a tripod
– operation up to 4 hours on batteries

Technical parameters :

– laser type: green LD
– laser power: 20mW
– laser class: II
– laser wavelength: 520nm ± 5nm
– number of lasers: 2
– laser beam width: <4mm / 10m (at 80 - 100lux inside)
– working distance: 10m (at 30 – 100lux inside)
– horizontal / vertical accuracy: ≤ ± 3mm at a distance of 10m
– horizontal / vertical beam angle: ≥120 °
– automatic balancing time: 3s
– automatic balancing range: 3 ° ± 1 °
– working temperature: -10 ° C to + 40 ° C
– storage temperature: -20 ° C to + 70 ° C
– power supply: alkaline batteries 2pcs x 1.5V AA (LR6)
– working time (all lasers on): 4h
– dimensions: 85.5 x 62 x 90.3mm
– weight: 0.24kg ± 5%

Contents of individual packaging:

– cross laser LM570LD-II: 1 pc
– alkaline batteries (LR6) 1,5V AA: 2 pcs
– device case: 1 pc
– manual: 1pc

Wholesale packaging:

– standard quantity in a carton: 20pcs
– standard carton dimensions: 420 x 320 x 350 mm
– total carton weight: 10.71 kg

Manufacturer:
https://www.uni-trend.com/
