Multimeter UNI-T UT123T

Description

Multimeter UNI-T UT123T

This product comes with a 3-year warranty.

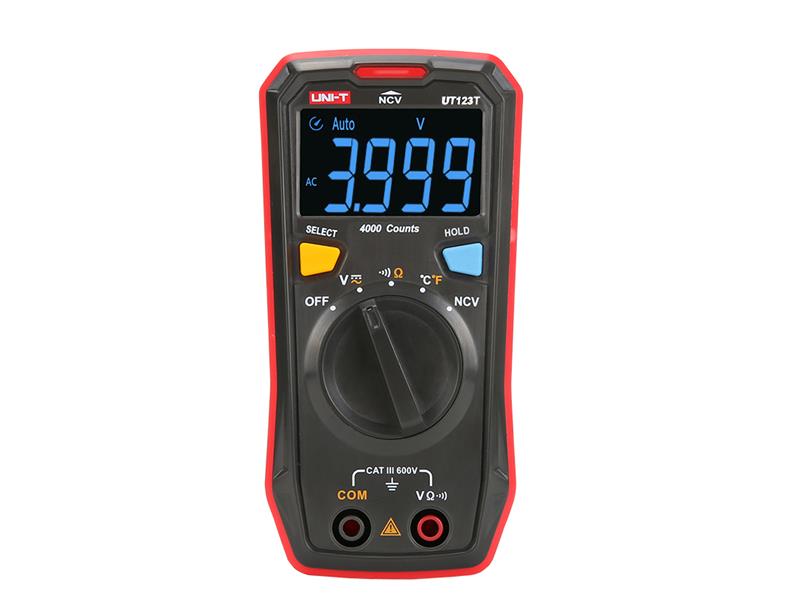

The UNI-T UT123T is a simple handheld multimeter for home use. The compact structure makes it easy to hold in one hand and the EBTN display allows users to get readable values at a maximum angle. Intelligent non-contact AC electric field detection that distinguishes between weak, strong and super strong electric fields.

Product parameters:

– Measurement of AC / DC voltage, resistance, temperature, broken line indication
– Indication of electromagnetic field around wires under AC voltage
– Automatic battery status check
– Automatic identification of AC V / DC V measurements.
– Automatic range switching for voltage and resistance measurements
– Automatic shutdown after 15 minutes of inactivity
– Maximum display value: 4099

Technical parameters :

DC Voltage Measurement: 4V / 40V / 400V / 600V ± (0.5% ＋ 2)
AC Voltage Measurement: 4V / 40V / 400V / 600V ± (1.0% + 3)
Resistance Measurement: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 20MΩ ± (0.8% + 2)
Temperature measurement: -40 ° C to + 300 ° C / -40 ° F to 572 ° F
NCV (non-contact voltage detection)
Indication of broken lines
Display Type: EBTN
Display size: 44 x 26 mm
Maximum display value: 4099
Sampling frequency: 3 times per second
Supply voltage: 2xAAA battery 1,5V
Measurement according to CAT III 600V standard
Dimensions: 130 x 65 x 28mm
Weight: 130g

Package contents :
– test cables 1-pair
– thermocouple 1pc
– AAA battery 1.5V 2pcs

Packaging: 1 pc / 60 pcs
