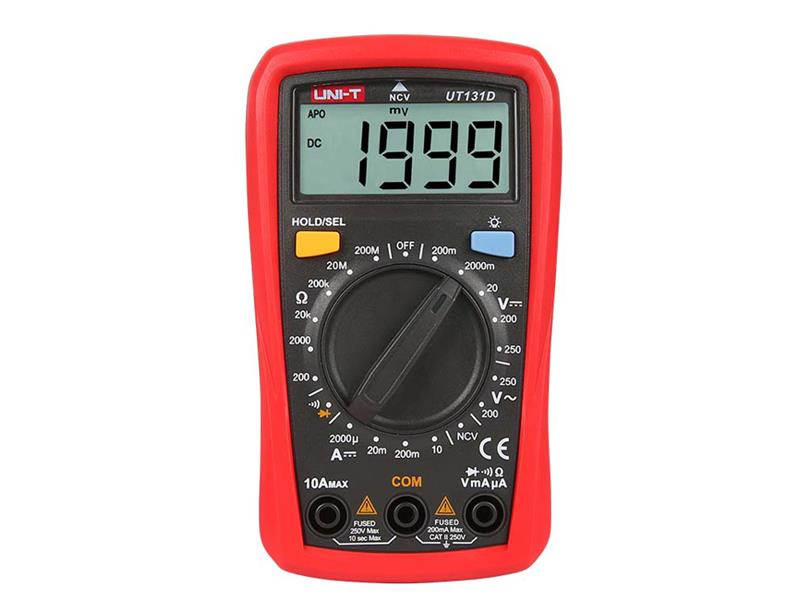

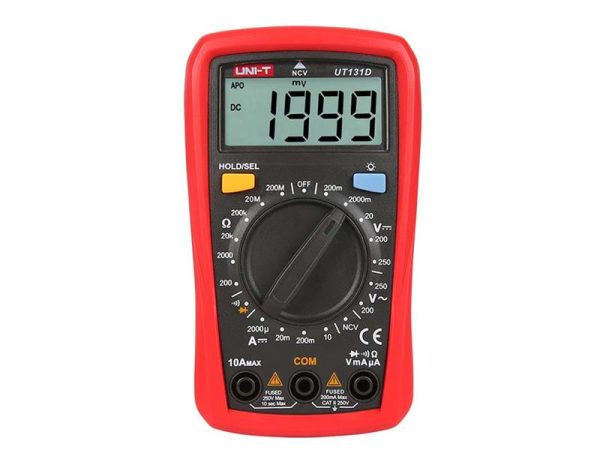

Multimeter UNI-T UT131D

Description

Multimeter UNI-T UT131D

This product comes with a 3-year warranty.

UT131D with non-contanc electric field measuring

New generation of multimeter UT131 series offers a greater measuring standar in the category of low cost multimeters. Innovative and industrial design ensures impact resistance of the multitemer from a two meter height. New layout of LCD display is both more comprehensive and practical for all users, and has a backlight option. Multimeters UT131 series ensure safe usage and measuring according to CAT II standard.

Multimeter functions:

AC voltage measuring – 200 V / 250 V
DC voltage measuring – 200 mV / 250 V
DC current measuring – 200.0 μA / 10.00 A
Resistance measuring – 200.0 Ω / 20.0 MΩ
Non-contact electric field measuring with acoustic indication
Continuity test (buzzer)
Diode test
Manual range selection
Reversed polarity detection
Data hold function
Display backlight
Automatic shutdown after being idle for 15 min
Test leads included
Low battery indication
Overload protection, fuse protected

Technical parameters:

AC voltage measuring (range, resolution, accuracy) :
200.00 V / 0.1 V / ± 1.2 % + 3
250 V / 1 V / ± 1.2 % + 3

DC voltage measuring (range, resolution, accuracy) :
200 mV / 0.1 mV / ± 0.7 % + 3
2000 mV / 1 mV / ± 0.5 % + 2
20.00 V / 0.01 V / ± 0.7 % + 3
200.0 V / 0.1 V / ± 0.7 % + 3
250 V / 1 V / ± 0.7 % + 3

DC current measuring (range, resolution, accuracy) :
2000.0 μA / 1 μA / ± 1.0 % + 2
20.0 mA / 0.01 mA / ± 1.0 % + 2
200.0 mA / 0.1 mA / ± 1.0 % + 2
10.00 A / 0.01 A / ± 1.2 % + 5

Resistance measuring (range, resolution, accuracy) :
200.0 Ω / 0.1 Ω / ± 1.0 % + 2
2000 Ω / 1 Ω / ± 0.8 % + 2
20.00 kΩ / 0.01 kΩ / ± 0.8 % + 2
200.0 kΩ / 0.1 kΩ / ± 0.8 % + 2
20.00 MΩ / 0.01 MΩ / ±1.2 % + 3
200.0 MΩ / 0.1 MΩ / ± 5.0 % + 10

Multimeter conforms to IEC 61010-1, IEC 61010-2-030, CAT II
Dimensions (mm) : 134 x 77 x 47
Power supply : 2 x AAA 1.5 V batteries (included)
Weight : cca 206 g (with batteries)
Operating temperature : 0 – 40°C

Producer: UNI-TREND
