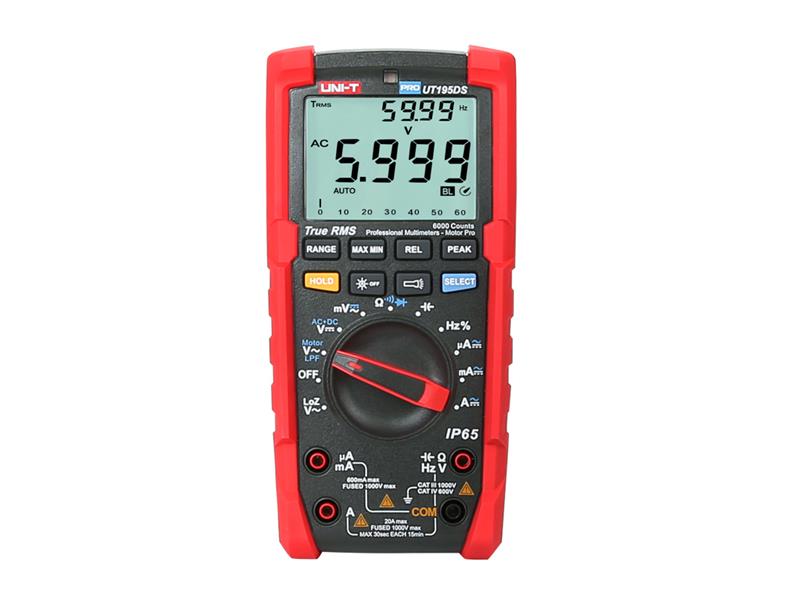

Multimeter UNI-T UT195DS PRO Line
Multimeter UNI-T UT195DS PRO Line This product comes with a 3-year warranty. Multimeter UNI-T UT195DS PRO Line Product parameters and functions: – display count: 6000– display interface (HTN): dual display– measuring digit conversion rate: times/s 5– measuring analogue bar conversion rate: times/s20– analogue bar: 31 section – True RMS – AC voltage frequency response: […]
Available on backorder
Description
Multimeter UNI-T UT195DS PRO Line
This product comes with a 3-year warranty.
Multimeter UNI-T UT195DS PRO Line
Product parameters and functions:
– display count: 6000
– display interface (HTN): dual display
– measuring digit conversion rate: times/s 5
– measuring analogue bar conversion rate: times/s20
– analogue bar: 31 section
– True RMS
– AC voltage frequency response: 45 – 5kHz
– AC current frequency response: 45 – 5kHz
– low pass filter test: (1kHz 3dB attenuation)
– diode/continuity test: 3V
– auto/manual range
– auto power off
– continuity buzzer
-low battery indication
– Data hold
– MAX/MIN
– functional selection
– electrical torch
– auto backlight
– working temperature: 0 °C – 40 °C
– 2m drop proof
– protection grade: IP65
Technical parameters:
– DC voltage: 600mV – 1000V ±(0.5%+3)
– AC+DC: 6.000V – 600V ±(1.5%+4)
– AC voltage: 600mV – 750V ±(0.7%+3)
– LoZ ACV: 600.0V ± (2.0%+3)
– DC current (A): 600.0μA – 20A ±(0.8%+3)
-AC current (A): 600.0μA – 20A ±(1.0%+3)
– resistance (Ω):600.0Ω – 60.00MΩ ±(0.8%+2)
– capacitance: 6.000nF – 60.00mF ±(3%+5)
– frequency: 60.00Hz – 40.00MHz ±(0.1%+4)
– duty ratio: 0.1% – 99.9% ±(2.0%+5)
– peaks hold: 250μS
– power supply: 9V 6F22 carbon-zinc or 6LR61 alkaline battery
– LCD size: 66mm × 51mm
– device weight: 473g
– device size: 195mm × 95mm × 58mm
Accessories:
– testing probes
– battery
– carrying bag
– manual
Manufacturer:
UNI-TREND
Additional information
Weight | 1 lbs |
---|---|
Dimensions | 20 × 20 × 20 in |
