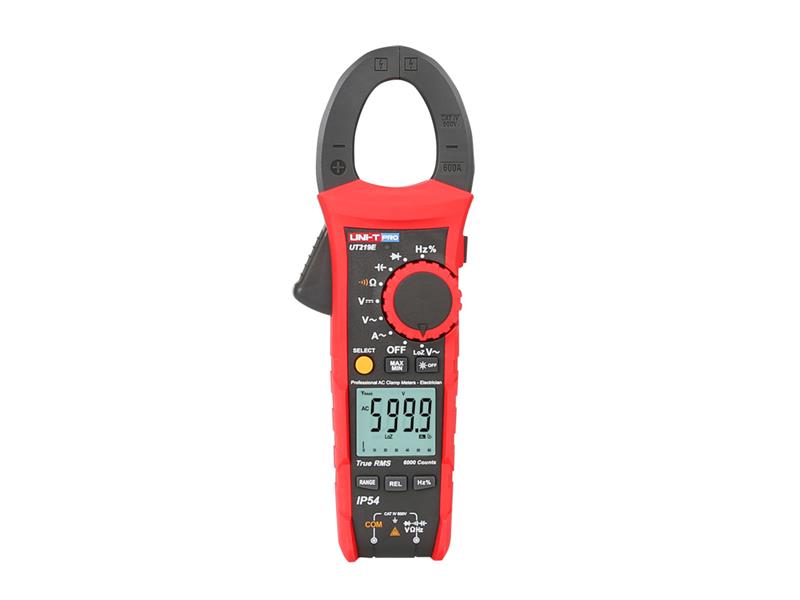

Multimeter UNI-T UT219E clamp PRO Line

Description

Multimeter UNI-T UT219E clamp PRO Line

This product comes with a 3-year warranty.

Clamp Multimeter UNI-T UT219E PRO Line

Product parameters and functions:

– display count: 6000
– auto/manual range 　
– jaw size: 33mm
– True RMS 　
– diode test: 6V/10V
– measuring digit conversion rate: times/s 3
– measuring analogue bar conversion rate: times/s 10
– analogue bar: 31 section
– LCD display (HTN): interface, single display
– auto power off 　
– low battery indication 　
– data hold (H) 　
– relative value (REL) 　
– MAX/MIN 　
– functional selection (SELECT) 　
– auto backlight 　
– 2m drop proof 　
– protection grade: IP54

Technical parameters:

– AC current (A): 60.00A – 600.0A ±(1.8%+6)
– AC voltage (V): 6.000V – 600.0V ±(1.0%+6)
– LoZ ACV: 600.0V ±(2.5%+6)
– DC voltage (V): 600.0mV – 600.0V ±(0.6%+3)
– resistance (Ω): 600.0Ω – 60.00MΩ ±(1.0%+3)
– capacitance: 60.00nF – 60.00mF ±(4.0%+7)
– frequency: 60.00Hz – 10.00MHz ±(0.1%+6)
– AC current frequency response: 40Hz – 400Hz
– AC voltage frequency response: 40Hz – 400Hz
– input impendance: ≥10MΩ
– duty ratio: 0.1% – 99.9% ±(2.6%+7)
– power supply: AAA 1.5V alkaline battery × 3
– LCD size: 35mm × 31mm
– device weight: 338g
– device size: 235 × 83 × 47 mm

Accessories:
– testing probes
– battery
– carrying bag
– manual

Manufacturer:
UNI-TREND
