Multimeter UNI-T UT219P clamp

Description

This product comes with a 3-year warranty.

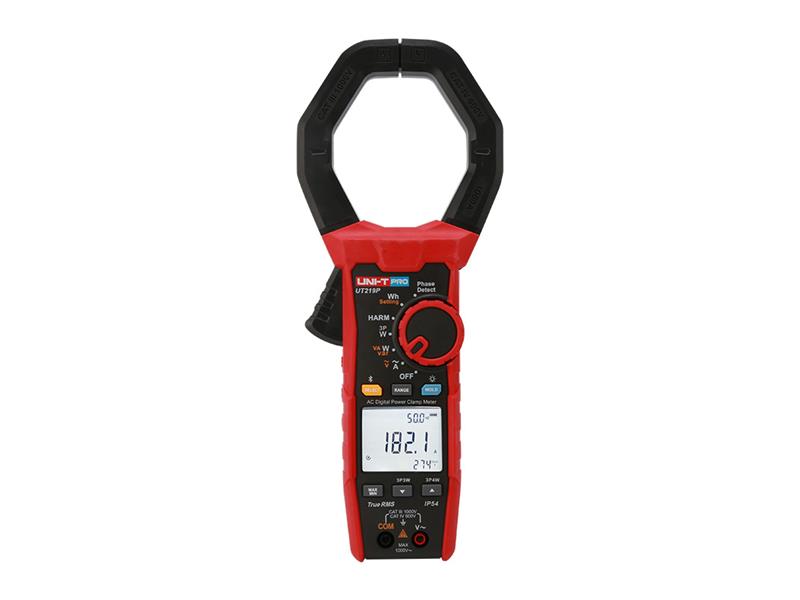

The UNI-T UT219P is an intelligent, handheld clamp-on power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC current, power, power factor and more. It is widely used in photovoltaic power plants, in the manufacture of motors, in electrical equipment and distribution boxes.

Product parameters:

– current measurement 1000A AC
– voltage measurement 1000V AC
– measurement of AC and DC PEAK
– three-phase power measurement (up to 3000kW)
– measurement of harmonics/THD/power factor/phase sequence
– single-phase power measurement
– large head of pliers (up to a diameter of 75 mm)
– measuring the true effective value
– Bluetooth 5.0
– CAT III 1000V/CAT IV 600V
– protection: IP54

Technical parameters:

AC current (A): 1000 A ±(1.5%+3)
AC voltage (V): 1000V ±（0.7%＋3）
Power (single-phase): 1000 kW ±（1.7%+5）
Power (3-phase & 3-wire): 1732 kW
Power (3-phase & 4-wire): 3000 kW
Power supply frequency (Hz): 15Hz ～ 1000Hz ±（0.3%+3）
Phase angle: (-180° ~ 179.9°)
15Hz～40Hz ±5°
40Hz ~ 70Hz ±3°
70Hz ~ 1000Hz ±5°
Power factor: -1 ~ 1 based on phase angle accuracy

– jaw opening: 75 mm
– phase detection: yes (80V~1000V) / positive and negative
– AC/DC PEAK measurement
– harmonic measurement 32 times
– LCD screen
– number of impressions: 9999
– Bluetooth app: yes
– true RMS: yes
– overload indication: yes
– high voltage indication: yes
– high voltage overload warning
– low battery indication
– data tribute
– automatic shutdown: approx. 15 minutes
– max/min: yes
– power supply: 3 x AAA (R03)
– dimensions: 295 x 118 x 50 mm
– weight: 630 g
