Multimeter UNI-T UT256

Description

This product comes with a 3-year warranty.

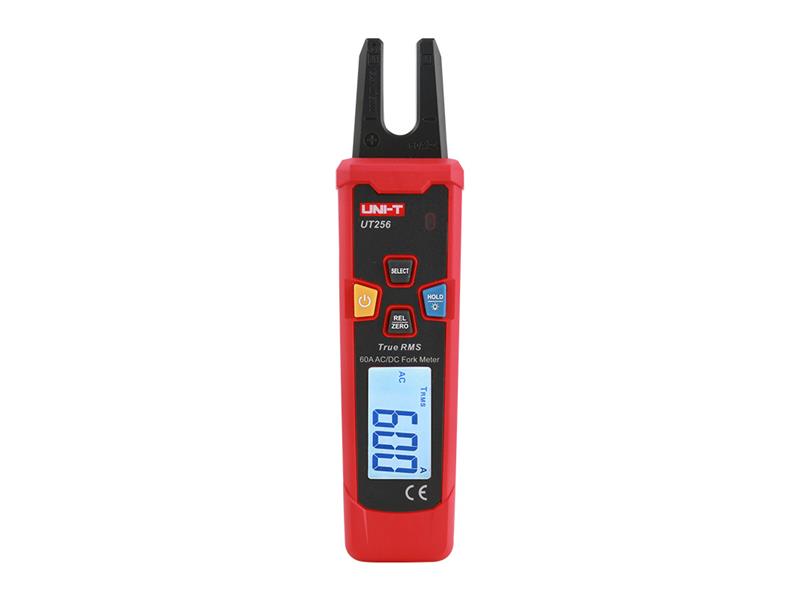

The UT256 device is an easy-to-use non-contact AC/DC current meter up to 60A CAT III 600V with True RMS automatic range. The design of the fork-shaped clamping head enables more convenient current measurement on wires up to 10 mm in diameter. It can detect the presence of voltage via an integrated non-contact voltage (NCV) sensor on the tip of the fork. Thanks to the audio and visual alarm function, this device allows you to get the measurement results more intuitively. The specially designed thin jacket and thin fork are very useful for measuring cables in tight spaces.
Thanks to its modern appearance, durable design and also functions such as LCD backlight, REL, ZERO, HOLD, make the UT256 an ideal instrument for measurement. The multimeter comes with two 1.5V AAA batteries that are easy to replace, and the easy access door is designed for quick battery replacement.
The multimeter is designed in accordance with safety standards IEC/EN61010-1, 61010-2-032 and electromagnetic compatibility EN61326-1 and meets the safety standard of double insulation, overvoltage CAT III 600V and pollution level 2, it is intended for indoor use.

Product parameters :

– AC/DC current measurement
– non-contact indication of the presence of voltage (NCV) in wires or terminals
– backlit LCD display, the maximum displayed value of the display is 600
– sound and optical alarm
– accuracy is guaranteed in the range of 1A to 60A
– powered by two AAA 1.5V R03 batteries

Technical parameters :

To ensure measurement accuracy, the operating temperature should be in the range of 18°C – 28°C

1. AC current measurement (ranges/resolution/accuracy):
60.0A / 0.1A / 1.0A to 3.0A accuracy ±(2%+10)
60.0A / 0.1A / 3.0A to 60.0A accuracy ±(2%+5)
Accuracy is guaranteed in the range of 1A to 60A for frequencies of 50Hz to 60Hz.

2. DC current measurement (ranges/resolution/accuracy):
60.0A / 0.1A / 1.0A to 3.0A accuracy ±(2%+10)
60.0A / 0.1A / 3.0A to 60.0A accuracy ±(2%+5)
Accuracy is guaranteed in the range of 1A to 60A.

3. Non-contact electric field sensing (NCV):
– allows detecting live conductors acoustically using a buzzer and optically using an LED

Other parameters :

– fork opening: 10mm
– measurement in REL mode: yes
– measurement of effective rms current values: yes
– data retention (HOLD): yes
– reset values: yes
– low battery indication: yes
– automatic power off: yes, after approx. 30 minutes
– resistance to falling: yes, 2 m with guarantee of functionality
– electromagnetic compatibility: RF≤1V/m overall accuracy = stated accuracy +5% of range, if RF>1V/m then accuracy not specified
– certificates: CE, UKCA, cETLus
– operating altitude: ≤ 2000m
– operating temperature and humidity: 0 to +30°C (≤ 80%RH), 30 to 40°C (≤ 75%RH), 40 to 50°C (≤ 45%RH)
– storage temperature and humidity: -20 to +60°C (≤ 80%RH)
– recommended calibration interval: 1 year
– power supply: 2 pcs AAA 1.5 V batteries (R03)
– product dimensions: 171 × 42 × 28 mm
– weight UT256: approx. 120g (including batteries)
– product color: red and gray

Package contents :

– clamp multimeter UT256: 1 pc
– battery 1.5 V (R03): 2 pcs
– instructions for use: 1 pc
– carrying bag: 1 pc

Wholesale packing :

– standard quantity per carton: 40 pcs
– standard carton dimensions: 380 x 225 mm x 290 mm
– standard gross weight of the carton: approx. 14 kg

Manufacturer :
UNI-TREND
– www.uni-t.cz
