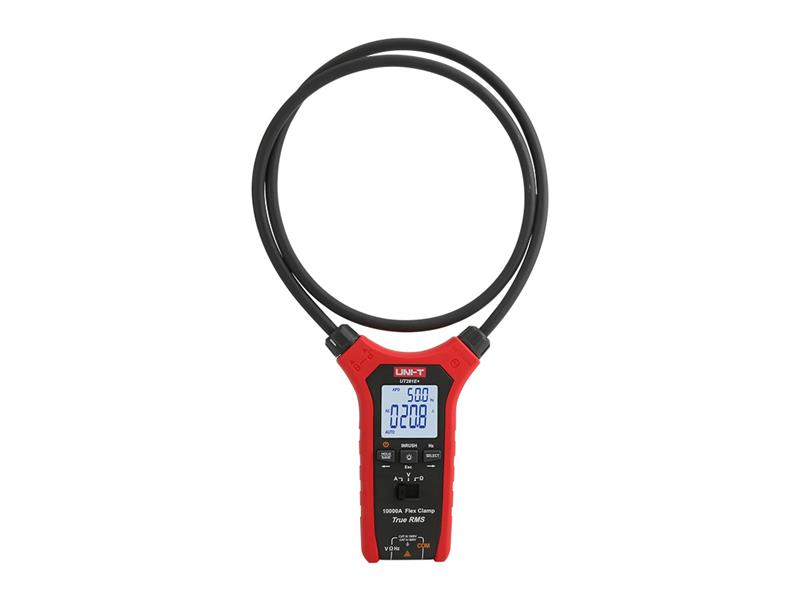

Multimeter UNI-T UT281E+ clamp

Description

This product comes with a 3-year warranty.

The UT281E+ True RMS Flexible Coil Multimeter is a high-precision and multifunctional electrical measuring instrument. It offers a current measurement range of up to 10,000A, comes with a 1.1m flexible coil, has full-range overload protection, and features a unique appearance, making it suitable for a variety of applications. It is widely used in fields such as metallurgy, communications, manufacturing, energy, electrical engineering, and photovoltaic power plants.

Product parameters:

– True RMS measurement with 6000 counts
– Current range 10000 A (automatic switching for each level)
– Inrush current measurement 6000A
– Flexible coil with a length of 1100 mm
– Frequency response: 45 Hz – 500 Hz
– AC/DC voltage test up to 1000 V
– Resistance: 60MΩ
– Dual LCD display – display: AC V and Hz; ACA and Hz
– Surge resistance up to 1000 V (30 kVA)
– Alarm indication; Safety standards: IEC 61010 – 1
– overvoltage category: CAT III 1000 V / CAT IV 600 V
– certification: CE, cETLus, RoHS

Technical parameters:

– AC current measurement: 60A / 600A / 6000A / 10000A ±(2%+5)
– frequency response (ACA): 45Hz – 500Hz
– resolution and accuracy: 0.01A, ±(2%+5)
– starting current: 6000 A
– AC voltage measurement: 1000 V
– accuracy (ACV): ±(1.2%+3)
– DC voltage measurement: 1000 V
– accuracy (DCV): ±(1.2%+3)
– resistance measurement: 60.00MΩ ±(1.0%+5)
– frequency measurement 10.00Hz to 30.00kHz ±(0. 5%+3)
– True RMS
– Number of displays: 6000
– Sampling rate: 3 times/s
– Data hold
– Backlight
– Power supply: AAA(R03) 1.5V battery – 3 pcs
– Product dimensions: 145 x 58 x 33 mm
– Clamp dimensions: Rogowski flexible coil
Length: 1100 mm
Coil inner diameter, radius: 15.92 cm
Coil diameter: 8 mm
– Dimensions (LCD): 35 x 32 mm
– Warning indication: high voltage and overload
