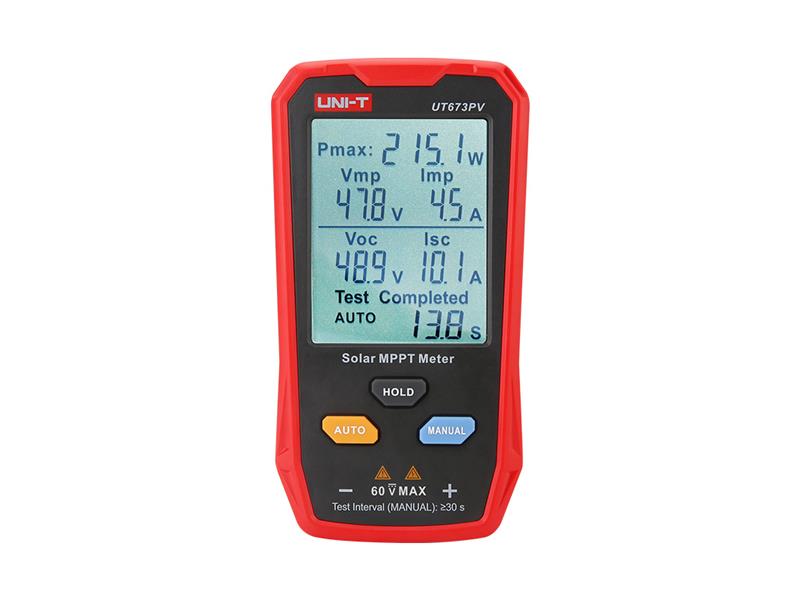

Multimeter UNI-T UT673PV

Description

This product comes with a 3-year warranty.

The UT673PV MPPT solar meter can effectively identify any abnormalities in solar panels by testing their peak power, peak voltage, peak current, open circuit voltage and short circuit current. Thanks to the large display and the possibility of automatic measurement, this device conveniently displays all measurement results at the same time. Its lightweight design allows for easy portability, which greatly increases the efficiency of operation and maintenance. Application areas: solar panel manufacturers, solar panel users, assembly companies, etc.

Product parameters:

– for installation and maintenance of solar panels
– large LCD display shows all basic test values
– no batteries needed, power from solar panel
– portable and convenient
– easy to use
– equipped with MC4 test cable

Technical parameters::

– maximum power test (Pmax) 5 W to 800 W ±(1.0% + 10)
– peak supply voltage (Vmp) 12 V to 60 V ±(1.5% + 5)
– peak current (Imp) 0 A to 35 A ±(1.5% + 5)
– open circuit voltage (Voc) 12V to 60V ±(1.5% + 5)
– short-circuit current (Isc) 0 A to 35 A ±(1.5% + 5)
– LCD display (52 x 66 mm)
– connection protection against reversed polarity
– overvoltage protection
– overcurrent protection
– protection against overheating
– overvoltage protection
– manual MPPT test
– Data tribute
– power: no batteries needed, power from solar panel
– dimensions: 143 × 74 × 25 mm
– color design: red + black
– category: CAT 0 60V
– certification: CE, cETLus, RoHS

Manufacturer: UNI-TREND
