Oscilloscope UNI-T UTD1025DL

Description

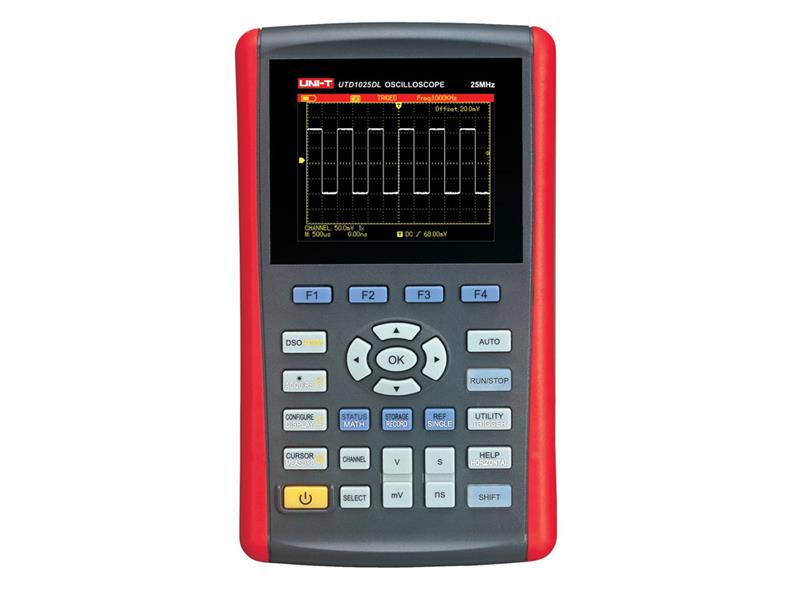

Oscilloscope UNI-T UTD1025DL

The UTD1000DL series handheld digital storage oscilloscope is a portable 2-channel device. It also has a bandwidth of 25 MHz and a sampling rate of 250 MS/s. It offers a simple functional front panel that allows you to perform all basic measurements and procedures without having to get to the bottom of the device. Use the AUTO button to make quick settings. Possibility to download software for connecting to a PC from the manufacturer’s website:
https://instruments.uni-trend.com/list_184/1059.html

SPECIFICATIONS (oscilloscope):

Channels 2
Bandwidth 25MHz
Sampling 200MS/s
Sample rate <14ns
Memory Depth 12kpst
Vertical Sensitivity 5mV/div ~ 20V/div
Time Base 10ns/div ~ 50s/div
Saving: bitmap, setup, wave
Trigger Modes: edge, puls, video, slope
Communication Interface: mini USB

SPECIFICATIONS (multimeter):

DC voltage 400mV/4V/40V/400V +-(1%+5)
AC voltageí 400mV/4V/40V/400V +-(1.2%+5)
DC current 400uA, 4000uA +-(1.2%+5), 40mA, 4000mA +-(1%+5), 10A +-(1.5%+5)
AC current 400uA, 4000uA +-(2%+5), 40mA, 4000mA +-(1.5%+5), 10A +-(2.5%+5)
Resistance 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ +-(1.2%+5), 40MΩ +-(1.5%+5)
Capacitance 51.20nF, 512nF, 5.120uF, 51.20uF, 100uF +-(3%+5)
Digits 4000

GENERAL CHARACTERISTICS:
Size: 199mm x 118mm x 49mm
Weight: 0,9Kg
LCD Size: 3,5″, 320×240
Power: 100-240V 50/60Hz 1.5A
Standart Accessory: DC adaptor, Test Leads, OSC probe 1x/10x, 10A current divider,power cord, USB cablel

Manufacturer: UNI-TREND
