Oscilloscope UNI-T UTD1050DL

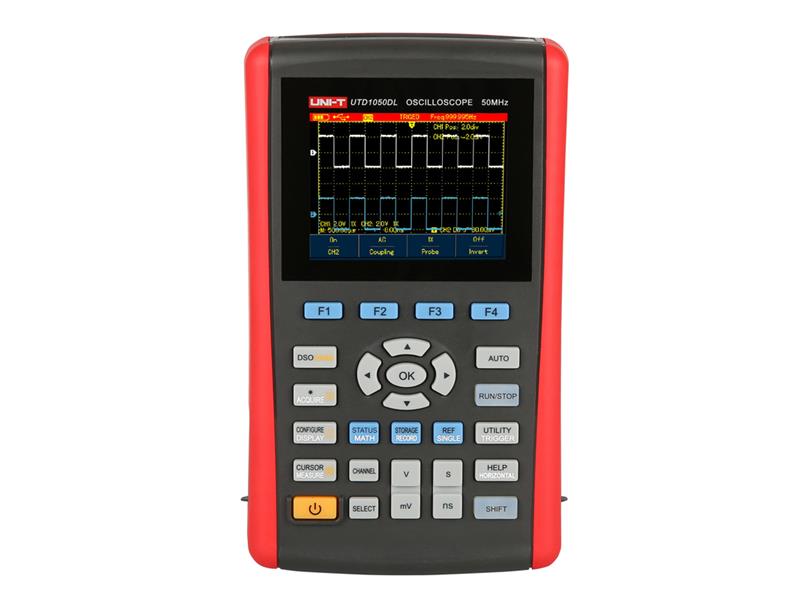

Handheld Digital Storage Oscilloscope UNI-T UTD1050DL

The UTD1000DL series handheld digital storage oscilloscope is a portable 2-channel device. It also has a sampling rate of 250 MS/s and, unlike the lower version UTD1025DL, a 50 MHz bandwidth. It offers a simple functional front panel that allows you to perform all basic measurements and procedures without having to get to the bottom of the device. Use the AUTO button to make quick settings.

TECHNICAL SPECIFIATIONS:

Channels: 2
Bandwidth: 50MHz
Sampling Rate: 250MS/s
Rise Time: ≤7ns
Memory Depth: 12kpts
Vertical Sensitivity (V/div): 5mV/div～20V/div
Time base scale(s/div): 5ns/div～50s/div
Storage methods: Bitmap, Setup, Waveform
Trigger types: Edge, Pulse, Vedio, Slope
Interface: Mini USB
Possibility to download software for connecting to a PC from the manufacturer’s website: https://instruments.uni-trend.com/list_184/1059.html

Multimeter Specifications (Range,Accuracy)

DC Voltage(V): 400.0mV/ 4.000V/ 40.00V/ 400.0V ±(1%+5)
AC Voltage (V): 400.0mV/ 4.000V/ 40.00V/ 400.0V ±(1.2%+5)

DC Current (A):
400.0μA/ 4000μA ±(1.2%+5)
40.0mA/ 400mA ±(1%+5)
4A ±(1.5%+5)

AC Current (A):
400.0μA/ 4000μA ±(2%+5)
40.0mA/ 400mA ±(1.5%+5)
4A ±(2.5%+5)

Resistance (Ω):
400.0Ω/ 4.000kΩ/ 40.00kΩ/ 400.0kΩ/ 4.000MΩ ±(1.2%+5)
40.0MΩ ±(1.5%+5)

Inductance (F): 51.20nF/512.0nF/5.120μF/51.20μF/100μF ±(3%+5)

Display Count: 4000

Power: Li-ion Battery: 7.4V 3600mAh；DC Adapter: 100～240V 50/60Hz input, 9V/4A output
LCD Size: 3.5 Inches 64K Color TFT LCD, 320×240
Product Color: Red and Grey
Product Weight: 0.9kg
Product Size : 118mm × 199mm × 49mm

ACCESSORIES: Adapter, Test Lead, Probe×2(1:1,10:1 switchable), Current/Voltage Convertor×2, Power Cord, USE Cable

MANUFACTURER
UNI-TREND
