Oscilloscope UNI-T UTD1062C

Description

Oscilloscope UNI-T UTD1062C

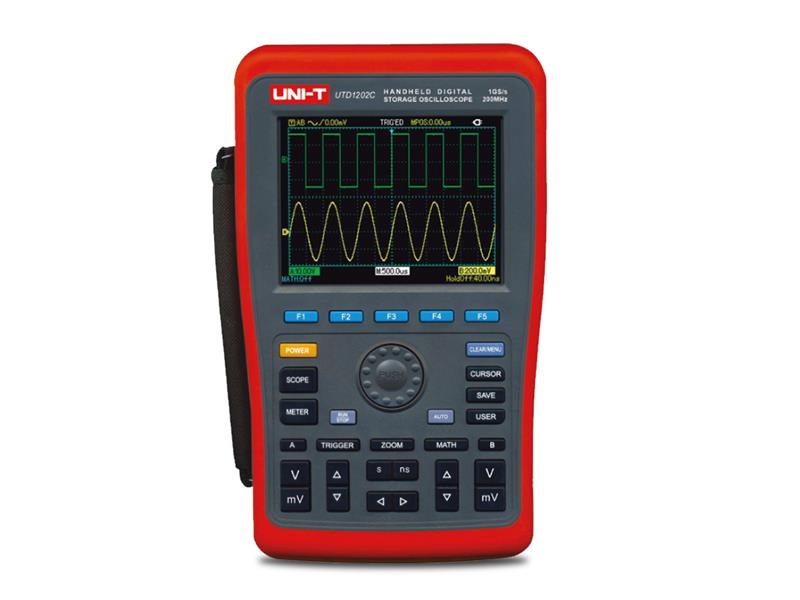

The UTD1062C device combines a handheld two-channel oscilloscope and a multimeter in one case. It offers excellent parameters and a number of advanced functions, as well as user-friendliness, which makes it suitable for work in an external environment. The bandwidth of the oscilloscope is up to 60MHz at 250MSa/s sampling. Its powerful triggering and analysis functions make it easy to acquire and analyze waveforms, it can measure 27 signal parameters fully automatically. A multimeter allows you to measure DC and AC voltages and currents, resistance and capacitance.
The device has a built-in color LCD display with a diagonal of 5.7 inches with a resolution of 320 x 240 pixels. The display shows the curves in monochrome mode, so it is easy to read even in strong light. In multimeter mode, the maximum value on the display is ±5999.
The device is powered by a built-in Li-ion battery or a 9V/4A AC/DC adapter.
Since the design of the device is based on the controls of traditional devices, users can use these devices without having to spend a significant amount of time learning and familiarizing themselves with the controls.
The device is certified for an input voltage range of 150V in CAT II (probe divider 1:1) and an input voltage of 300V in CAT II (probe divider 1:10).

Product parameters :

Oscilloscope:
– bandwidth: 60MHz
– number of analog channels: 2
– sampling: 250MS/s
– max. memory depth: 7.5 kpts
– A/D converter resolution: 8 bit
– time base range: 5ns/div to 50s/div
– input coupling: (1MΩ±2%)//(21pF±3pF)
– vertical axis: 5mV/div – 50V/div (1MΩ)
– rising edge: ≤ 5.8ns
– boot: Edge, pulse, video
– mathematical operations with progressions: A + B, A -B, A x B, A : B
– automatic measurement: peak-to-peak, amplitude, maximum, minimum, top, bottom, mean, average, root mean square, overshoot, preshoot, frequency, cycle, rising time, falling time, positive pulse, negative pulse, positive duty ratio, negative duty ratio, rise delay, fall delay
– FFT: Hanning, Hamming, Blackman-Harris, Rectangular
– storage in internal memory: 10 groups of curves, 10 setting modes
– saving to USB: 10 groups of curves, 10 groups of interfaces

Multimeter:
– measuring ranges of DC voltage: 600mV / 6V / 60V / 600V / 1000V; accuracy ±(1%+5)
– measuring ranges of AC voltage (45Hz to 400Hz): 600mV / 6V / 60V / 600V / 700V; for f < 200Hz accuracy ±(1.2%+5); for f ≥ 200Hz accuracy ±(1.5%+5)
– measuring ranges DC current: 6mA / 60mA / 600mA; accuracy ±(1.2%+5); for 6A accuracy ±(1.5%+5)
– measuring ranges of AC current (45Hz to 400Hz): 6mA / 60mA / 600mA; accuracy ±(2%+5); for 6A accuracy ±(2.5%+5)
– resistance measurement ranges: 6kΩ / 60kΩ / 600kΩ; accuracy ±(1.2%+5); 600Ω / 6MΩ / 60MΩ accuracy ±(1.5%+5);
– capacitance measurement ranges: 6nF / 6mF; accuracy ±(5%+10); 60nF / 600nF / 6µF / 60µF / 600µF accuracy ±(4%+5);
– measurement of diodes and circuit continuity: yes
– range switching mode: automatic / manual
– displaying and recording the trend curve of changes in voltage, current, resistance

Technical parameters :

– power supply: 100V-240V AC, 45 to 440Hz, CAT II, power consumption < 20VA
– standard interface: 1 x USB-Host
– battery: Li-ion 7.4V/4400mA
– battery operation: 3 hours
– display: 8 inches, 800 x 480 pixels
– calibration: recommended once a year
– IP protection: IP2X
– ambient working temperature: 0°C to +40°C
– storage temperature: -20°C to +60°C
– ambient working humidity: <35℃: ≤90%RH, 35℃ to 40℃: ≤60%RH
– working altitude: max. 3000m above sea level
– non-working (storage) altitude: 15000m above sea level
– net weight: 1.8 kg
– gross weight: 4.5 kg
– dimensions: 268 x 168 x 60mm

Package contents :

– device UTD1062C: 1 pc
– probe with 1.2m cable and switchable divider 1x, 10x (UT-H04): 2 pcs
– current (4mA to 600mA) / voltage converter module (UT-M03): 1 pc
– current (4A to 6A) / voltage converter module (UT-M04): 1 pc
– DC adapter 100 to 240 V AC rms, 45 to 440Hz, CAT II: 1 pc
– USB cable: 1 pc
– user manual: 1 pc

Packaging for bulk customers :

– standard quantity per carton: 4 pcs
– standard carton dimensions: 500 x 400 x 320 mm
– gross weight of the carton: approx. 16.7 kg
