Protractor UNI-T LM320D

Description

This product comes with a 3-year warranty.

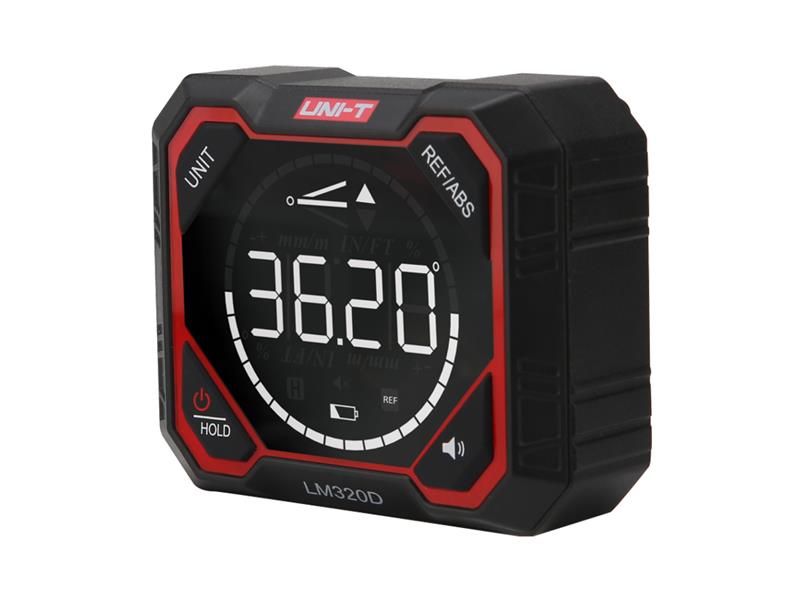

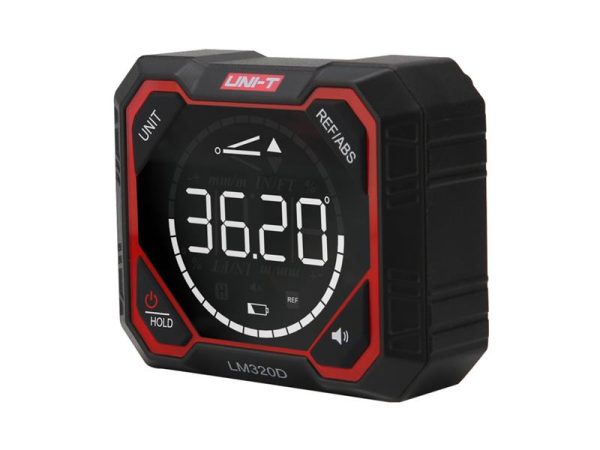

The LM320D digital protractor is a lightweight and portable protractor with a durable aluminum alloy frame, which guarantees durability during work. It allows you to accurately measure the slope of the plane, actually replacing a spirit level for construction work – when building roofs, floors, sewers. It is equipped with a high-resolution display and automatic screen rotation, which supports the entire 4×90° measurement range. The device provides real-time tilt angle data and is equipped with a magnetic base for easy and stable positioning. The basic unit of measurement is degree (°), but other units can also be selected: percentage (%), millimeters per 1m length or inches per 1 foot. It is widely used in the field of engineering, construction and mechanical installations. The device has a built-in 3.7V, 1000mAh lithium battery, which is charged in the device using the included USB-C cable.

Product parameters:

– precise digital protractor (inclinometer)
– aluminum alloy frame, lightweight and portable
– 4×90° angle measurement
– relative / absolute measurement modes
– multiple unit options: mm/m, in/ft, %, °
– rechargeable lithium battery 1000 mAh
– rotating screen with LED backlight
– equipped with magnetic bases
– certification: CE, RoHS
– language: English

Technical parameters:

– measurement range: 4 x 90°
– measurement resolution: ± 0.05°
– angle measurement accuracy: ± 0.2°
– measurement units: °; %; mm/m; in/ft
– laser indication: no
– laser accuracy: no
– magnetic attachment to the base: double-sided magnetic (bottom and back)
– angle measurement modes: relative / absolute measurement
– angle hold: yes
– screen rotation: yes
– automatic shutdown: yes
– material: AL alloy frame + ABS
– power supply: lithium battery 3.7 V / 1000 mAh
– working temperature: 0 ° C to 50 ° C
– laser class: no
– laser type: no
– battery life: 14 hours
– product size: 83.5 x 70 x 35.5 mm
– product net weight: 180 g
– product color: black and red

Individual packaging contents:
– digital protractor
– USB-C extension cable
– user manual:

MANUFACTURER: UNI-TREND
