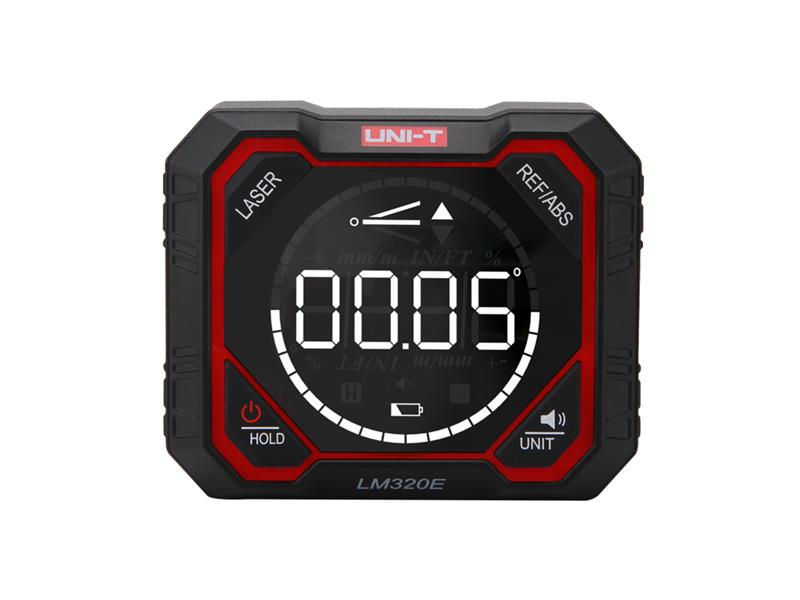

Protractor UNI-T LM320E

Description

This product comes with a 3-year warranty.

The LM320E digital protractor is a lightweight and portable protractor with a durable aluminum alloy frame, which guarantees durability during work. It allows you to accurately measure the slope of the plane, actually replacing a spirit level for construction work – when building roofs, floors, sewers. It is equipped with a high-resolution display and automatic screen rotation, which supports the entire 4×90° measurement range. The device provides real-time tilt angle data and is equipped with a magnetic base for easy and stable positioning. The basic unit of measurement is degree (°), but other units can also be selected: percentage (%), millimeters per 1m of length or inches per 1 foot. It is widely used in the field of engineering, construction and mechanical installations. The device has two lasers built into opposite sides, which can be individually turned on and off and which can project the center of the protractor, for example, onto a wall. The device has a built-in 3.7V, 1000mAh lithium battery, which is charged in the device with the included USB-C cable.

Product parameters:

– precise digital protractor (inclinometer)
– aluminum alloy frame, lightweight and portable
– 4×90° angle measurement
– relative / absolute measurement modes
– multiple unit options: mm/m, in/ft, %, °
– rechargeable lithium battery 1000 mAh
– rotating screen with LED backlight
– equipped with magnetic bases
– laser indication
– certification: CE, RoHS
– language: English

Technical parameters:

– measurement range: 4 x 90°
– measurement resolution: ± 0.05°
– angle measurement accuracy: ± 0.2°
– measurement units: °; %; mm/m; in/ft
– laser indication: yes, two built-in lasers
– laser accuracy: ± 3 mm / 5 m
– magnetic attachment to the base: double-sided magnetic (bottom and back)
– angle measurement modes: relative / absolute measurement
– angle hold: yes
– screen rotation: yes
– automatic shutdown: yes
– material: AL alloy frame + ABS
– power supply: lithium battery 3.7 V / 1000 mAh
– operating temperature: 0 ° C to 50 ° C
– laser class: 2
– laser type: 630 – 670nm, <1mW
– battery life: 8 hours
– product size: 83.5 x 70 x 35.5 mm
– product net weight: 180 g
– product color: black and red

Individual packaging contents:
– digital protractor
– USB-C extension cable
– user manual:

MANUFACTURER: UNI-TREND
