Socket Tester UNI-T UT07B-EU

Description

Socket Tester UNI-T UT07B-EU

This product comes with a 3-year warranty.

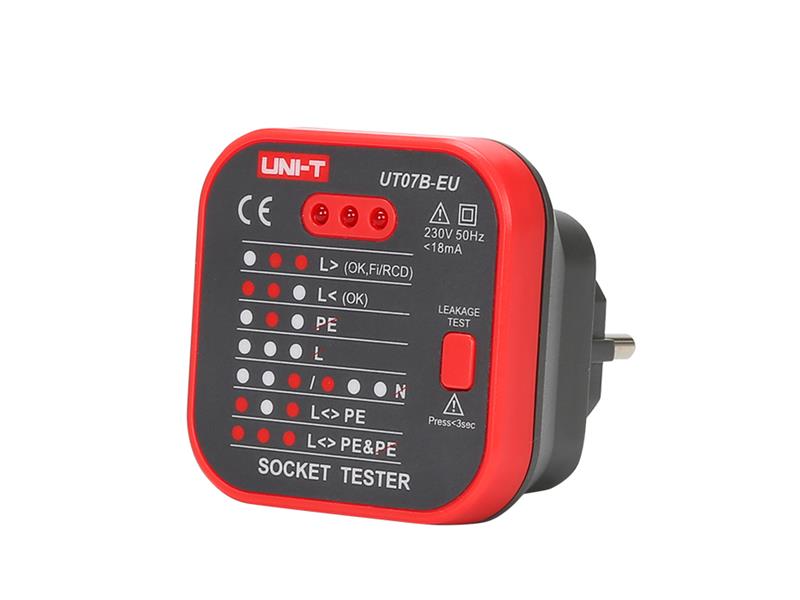

The UNI-T UT07B-EU device is a tester for simple control of 230V / AC socket connections. Using three control LEDs, it signals the correct connection of all three distribution wires and the functionality of the circuit breaker connection.

Product parameters :

Indication of seven socket connection states by means of three LEDs:
– OK, the protector (RCD) test passed.
– OK.
– No ground – yellow-green wire.
– No phase – brown or black wire.
– Zero (reverse) wire is missing – blue wire.
– Phase connected in reverse.
– Phase connected in reverse and ground is missing.

Technical parameters :

– operating voltage: 230V / AC
– operating current: <18mA
– operating frequency: 50Hz to 60Hz
– RCD function test: with a current of approx. 30 mA
– product color: red and gray
– weight: 80.5 g
– dimensions: 65 x 65 x 61 mm

Contents of individual packaging :

– tester UT07B-EU (in blister): 1pc
– instructions for use: 1pc

Wholesale packaging :

– standard quantity per carton: 48 pcs
– dimensions of standard carton: 430 x 330 x 365 mm
– weight of standard carton: 5.4 kg

MANUFACTURER: UNI-TREND
