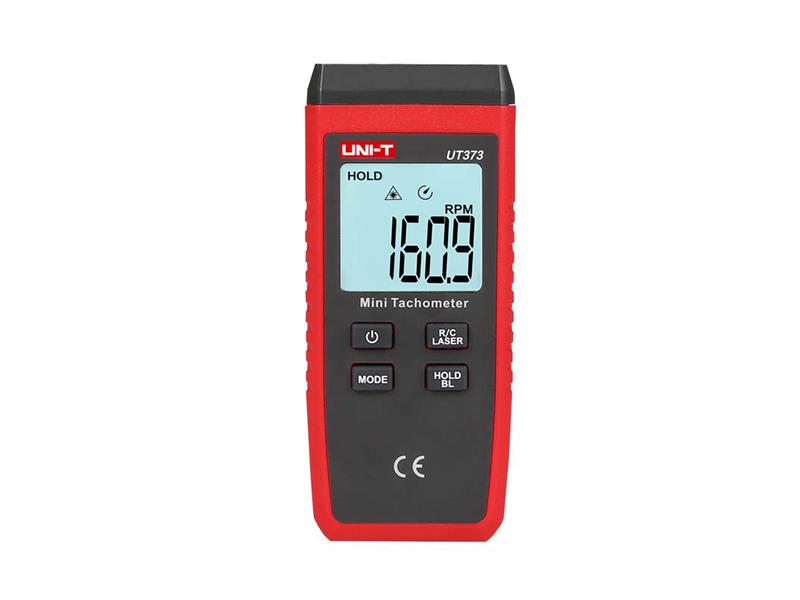

Tachometer UNI-T UT373

Description

Tachometer UNI-T UT373

This product comes with a 3-year warranty.

UT373 is a non-contact digital tachometer designed to measure the rotational speed of various objects and machine parts. It has a wide application in industry, mechanical engineering and workshops. It can display results in RPM or in individual revolutions. The measurement is carried out on the principle of laser beam interruption. This way we can for example count the number of articles going on a production belt. This device is equipped with an external light source mode when the laser pointer is off. The contactless measurement method does not require interference with the object and does not affect its operation or function.

Product parameters :

– digital tachometer with non-contact measurement and laser pointer
– automatic switching between 10.0 – 9999.9 rpm and 10000 – 99999 rpm
– counting of individual revolutions (pieces on the belt)
– sampling rate 1 – 7 s (automatically selected)
– display of minimum and maximum measured value
– included 3M reflective stickers to measure flatness rotation

Technical parameters :

– units of measurement : RPM, individual revolutions (Count)
– 1. RPM measurement range : 10.0 – 9999.9 RPM at 0.1 rpm resolution
– 2. RPM range : 10000 – 99999 RPM at 1 revolution resolution
– single speed counting range : 0 – 99999 at 1 speed resolution
– measurement accuracy : ± 0.04% + 2
– measuring distance : 50 – 200 mm
– measuring angle : <30 °
– sampling frequency : 1 – 7 s (automatic selection according to rotation speed)
– minimum and maximum value display mode
– laser pointer
– RPM mode, single speed
– external light source mode with laser indicator off
– indication of measurement outside the display range (display overflow)
– data hold
– display backlight
– low battery warning
– automatic shutdown when idle
– display dimensions : 35 x 32 mm
– device dimensions : 184 x 56 x 34 mm
– power supply : 3 x AAA batteries (included)
– drop resistance : 1 m
– working temperature : 0 to 50 ° C

Manufacturer: UNI-TREND
