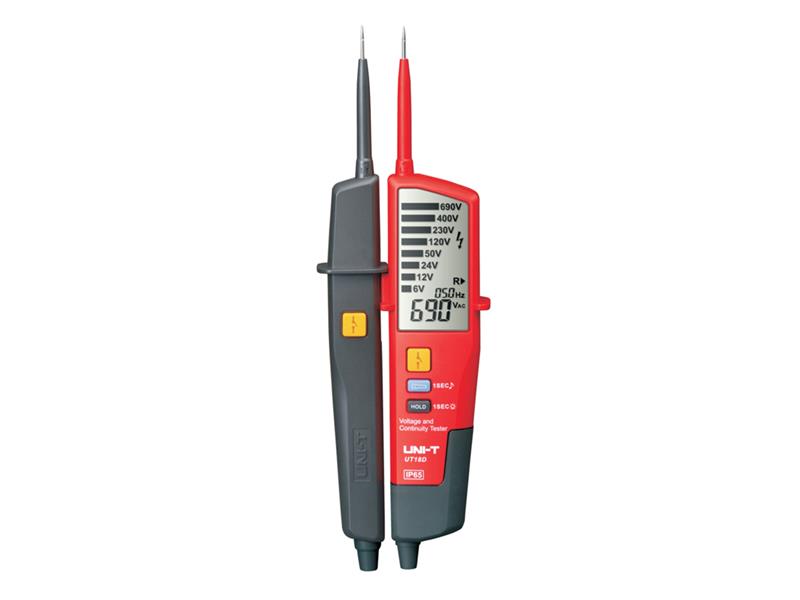

Voltage detector UNI-T UT18D

Description

Voltage detector UNI-T UT18D

This product comes with a 3-year warranty.

UT18D tester. The UT18D series tester is designed to test AC/DC voltage, three-phase voltage, phase sequence, continuity and more. This series is rated CAT IV 600V and meets the IP65 standard. Unlike the UT18C, the UT18D tester has a backlit LCD display. These voltage testers are the perfect tool for electricians to quickly measure voltage levels in all environments.
It is equipped with several useful voltage identification functions. It has an automatic mode that detects AC or DC voltage and signals the presence of voltage with an audible and visual alert.

Product parameters:

– huge LCD display
– RCD test
– extremely durable design
– dustproof, resistant to jet water (IP65)
– integrated LED flashlight
– phase rotation test
– buzzer
– polarity detection

Technical parameters:

– voltage
6V from 5V±1V
12V from 8V±1V
24V from 18V±2V
50V from 38V±4V
120V from 94V±8V
230V from 180V±14V
400V from 325V±15V
690V from 562V±24V

– phase rotation test 100V~690V, 50Hz~60Hz
– conductivity test
– RCD test 230V (50-400Hz)
– detection polarity
– self-test
– voltage indication – LED diodes
– IP65
– automatic range adjustment
– integrated LED flashlight
– low battery indication
– overvoltage 713V~788V
– silent mode
– LCD display (Voltage) 6V-690V ±(1.5%+5)
– LCD display (frequency) 40Hz-400Hz ±(3%+5)
– display backlight
– power supply 2×1.5V R03 batteries
– weight 280g
– LCD dimensions 73.5×35.5mm
– dimensions 272x85x31mm
– accessories: batteries, instructions

Manufacturer: UNI-TREND
